Features：
* Size: 2" to 36" wafer type, lug type
* Designs: ANSI 609；ISO 5752
* Materials: Body: Carbon steel; CF8 and CF8M Disc:SS304 and SS316 Shaft:SS416 and SS316;17-4pH. Seat: RPTFE; SS304 Bushing: Bronze and Glass backed PTFE
* Working Pressure: 2" to 6" 40 bar, 8" to 36" 25bar
Specification:

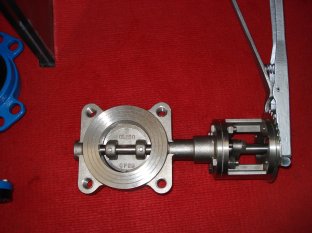

* The double offset design of the double eccentric butterfly valve assures reduced seat wear and bidirectional seal, zero leakage. When open the valve, the disc does not contact the seat, so the seat life is extended and operating torques are reduced, then it is more easier for user's operating.
* General: Standard valves tested to MSS SP-61. API 598 testing available on request.For 2" through 36" sizes: Face-to-face dimensions meet, within specified tolerance, MSS SP-68 and API 609 requirements
* Size: 2" to 36" wafer type, lug type
* Designs: ANSI 609；ISO 5752
* Materials: Body: Carbon steel; CF8 and CF8M Disc:SS304 and SS316 Shaft:SS416 and SS316;17-4pH. Seat: RPTFE; SS304 Bushing: Bronze and Glass backed PTFE
* Working Pressure: 2" to 6" 40 bar, 8" to 36" 25bar
Specification:
* The double offset design of the double eccentric butterfly valve assures reduced seat wear and bidirectional seal, zero leakage. When open the valve, the disc does not contact the seat, so the seat life is extended and operating torques are reduced, then it is more easier for user's operating.
* General: Standard valves tested to MSS SP-61. API 598 testing available on request.For 2" through 36" sizes: Face-to-face dimensions meet, within specified tolerance, MSS SP-68 and API 609 requirements
