MODEL YEAR 2007

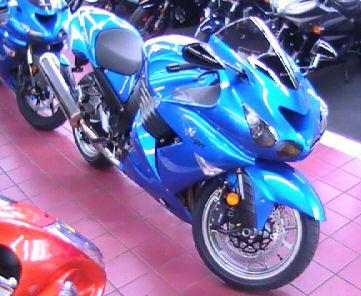

MODEL Ninja ZX-14
ENGINE
ENGINE 4-stroke, liquid-cooled, DOHC, 4-valve cylinder, inline-4
DISPLACEMENT 1,352 cc
BORE X STROKE 84 x 61 mm
TORQUE 113.5 ft. lbs. 7,500 rpm
COMPRESSION RATIO 12.0:1
CARBURETION DFI with Mikuni 44 mm throttle bodies (4)
IGNITION TCBI with digital advance
DIMENSIONS
LENGTH 85.4 in.
WIDTH 29.9 in.
HEIGHT 46.1 in.
WEIGHT 474 lbs.
WHEELBASE 57.5 in.
FUEL CAPACITY 5.8 gal.
SEAT HEIGHT 31.5 in.
DRIVETRAIN
TRANSMISSION 6-speed
FINAL DRIVE X-ring chain
SUSPENSION Front: 43 mm inverted cartridge fork w/ adj. preload, stepless rebound and compression damping adj.; 4.6 in. travel
Rear: Uni-Trak w/ adj. preload, stepless rebound and compression damping adj. adj. ride height; 4.8 in. travel
BRAKES/WHEELS/TIRES
BRAKES Front: Dual floating petal discs with 4-piston calipers
Rear: Single petal disc
TIRES Front: 120/70 ZR17
Rear: 190/50 ZR17
RAKE 23
TRAIL 3.7 in. (94 mm)
MODEL Ninja ZX-14
ENGINE
ENGINE 4-stroke, liquid-cooled, DOHC, 4-valve cylinder, inline-4
DISPLACEMENT 1,352 cc
BORE X STROKE 84 x 61 mm
TORQUE 113.5 ft. lbs. 7,500 rpm
COMPRESSION RATIO 12.0:1
CARBURETION DFI with Mikuni 44 mm throttle bodies (4)
IGNITION TCBI with digital advance
DIMENSIONS
LENGTH 85.4 in.
WIDTH 29.9 in.
HEIGHT 46.1 in.
WEIGHT 474 lbs.
WHEELBASE 57.5 in.
FUEL CAPACITY 5.8 gal.
SEAT HEIGHT 31.5 in.
DRIVETRAIN
TRANSMISSION 6-speed
FINAL DRIVE X-ring chain
SUSPENSION Front: 43 mm inverted cartridge fork w/ adj. preload, stepless rebound and compression damping adj.; 4.6 in. travel
Rear: Uni-Trak w/ adj. preload, stepless rebound and compression damping adj. adj. ride height; 4.8 in. travel
BRAKES/WHEELS/TIRES
BRAKES Front: Dual floating petal discs with 4-piston calipers
Rear: Single petal disc
TIRES Front: 120/70 ZR17
Rear: 190/50 ZR17
RAKE 23
TRAIL 3.7 in. (94 mm)
