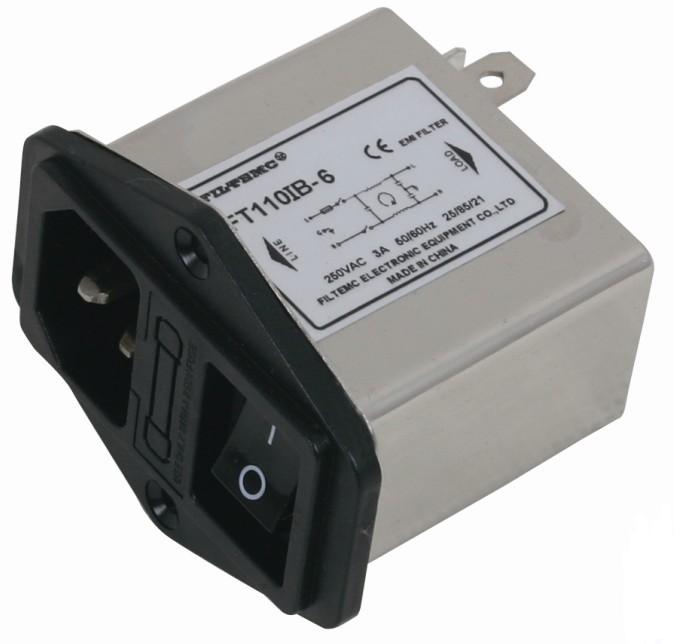

FT110IB-6
IEC socket series filters
Features & Applications
1. Low leakage current,and effectively suppress the noise interference on line to line and line to ground
2. Specially designed for IEC standard connector
3. Small size,compact structure,easy to install and high performance/price ratio
4. Rated current:0.5A-20A
5. Suitable for exchange machine,satellite TV system,LCD,LCD TV and other household appliances
Technical date
Rated Voltage:110/250VAC
Climatic Category:25/085/21
Test Voltage: line-line:1760VDC line-ground:2000VAC
Operating Frequency : 50/60Hz
Insulation Resistance : >200MΩ@500VDC
The IEC socket series filters we can produce:
*IEC socket series filters with fuse and switch
*IEC socket high performance series filters
*IEC socket filters with double fuses
*IEC socket filters with single fuse
*IEC socket filters with fuse and switch
Features & Applications
1. Low leakage current,and effectively suppress the noise interference on line to line and line to ground
2. Specially designed for IEC standard connector
3. Small size,compact structure,easy to install and high performance/price ratio
4. Rated current:0.5A-20A
5. Suitable for exchange machine,satellite TV system,LCD,LCD TV and other household appliances
Technical date
Rated Voltage:110/250VAC
Climatic Category:25/085/21
Test Voltage: line-line:1760VDC line-ground:2000VAC
Operating Frequency : 50/60Hz
Insulation Resistance : >200MΩ@500VDC
The IEC socket series filters we can produce:
*IEC socket series filters with fuse and switch
*IEC socket high performance series filters
*IEC socket filters with double fuses
*IEC socket filters with single fuse
*IEC socket filters with fuse and switch
Certificate
- UL
- CUL
- CE
- ROHS
