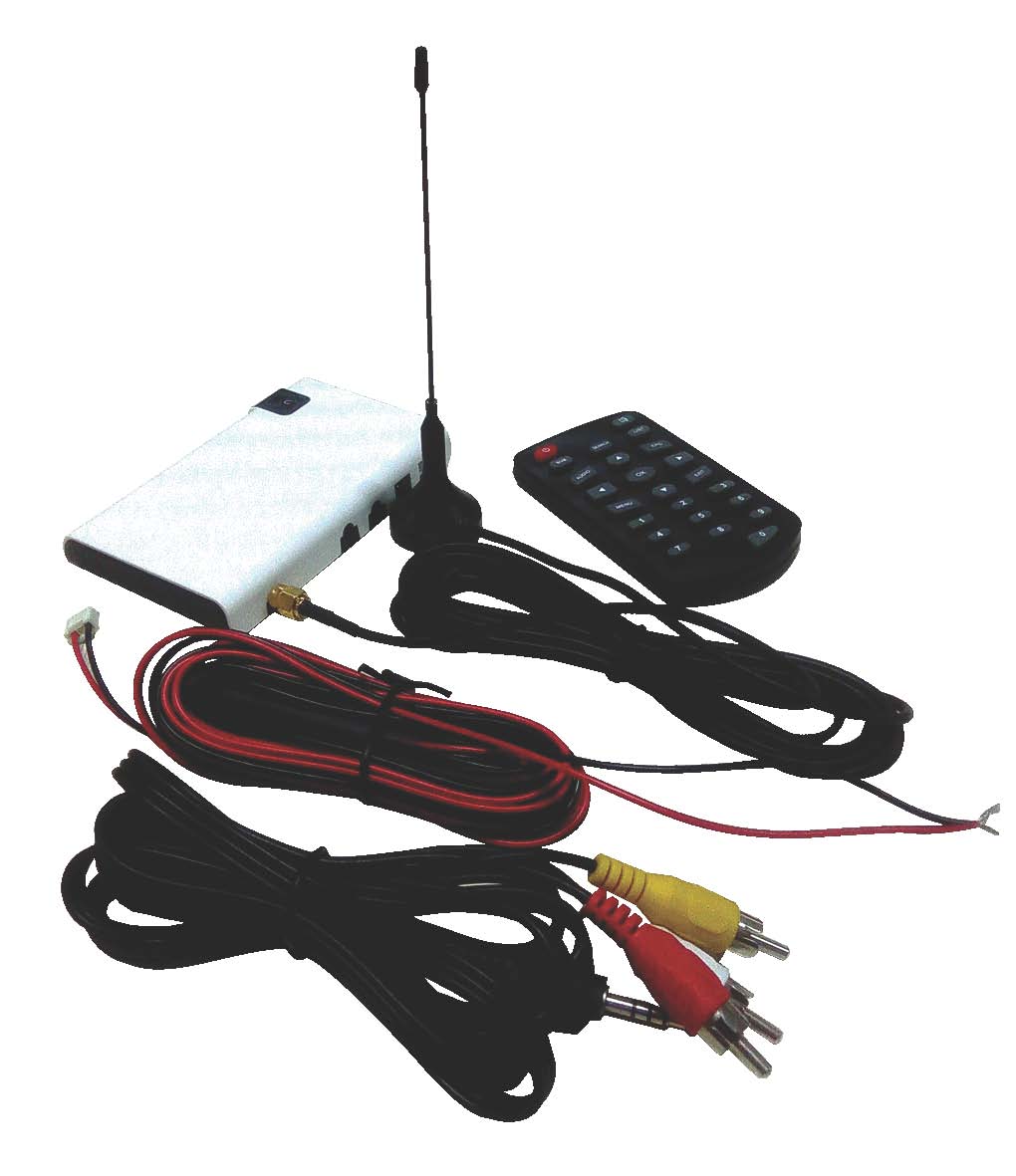

car ATSC-MH, ISDB-T, DVB-T digital TV receiver for US, Japan, Brazil & Euro markets
car receiver box for mobile DTV programs with ATSC-MH, ISDB-T, DVB-T standards
Product ID: FLC_CMDTVB-MH1185
Send Inquiry
KEY FEATURES:
Excellent Mobility Performance
High Receive Sensitivity
Best-in-Class Video Picture Quality
Customized UI & Applications
Competitive prices
Quick shipment
SPECIFICATIONS:
Standard:ATSC-M/H
Power Interface: 12V DC
Analog audio and video interface: Video-CVBS standard 75 ohm output impedance
Analog audio and video interface: Audio: Stereo, 1Vrms
Remote control interface: IR
Input RF Range: 0 ~ 1000MHz
Operating temperature: -20°C to +70°C
Frequency bands:UHF 473MHz-803MHz/ VHF 57MHz-213MHz
RF Input:Impendence 50 Ohm
Analog audio/video interface:
Video:CVBS-(output impendence: 75Ohm)
Audio:two channel stereo
Digital Audio/Video interface:
Video: CCIR656
Audio: 12S
Remote control interface: IR-external IR receiver required
Line-in interface:UART
Power interface: +3.3V
Size: SMT-type module: 40mm(W)*37mm(L)*3.0mm(H)
Connector-type module: 40mm(W))*37mm(L)*8.0mm(H)
Standard: ISDB-T/DVB-T
Power Interface: 12V DC
Analog audio and video interface: Video-CVBS standard 75 ohm output impedance
Analog audio and video interface: Audio: Stereo, 1Vrms
Remote control interface: IR
Input RF Range: 0 ~ 1000MHz
Operating temperature: -20°C to +70°C
Frequency range: isdb-t:UHF470-806MHZ; VHF 174-216MHZ
dvb-t:UHF471-862MHZ; VHF 174-240MHZ
Operating Voltage: 1.8V, 3.3V
Max.operating current: isdb-t:3.3v(220mA);1.8V(38mA)
dvb-t:3.3v(242mA);1.8V(38mA)
Max.power: isdb-t: 795mW
dvb-t:870mW
Input impendance: 50ohm
Structure size: 40mm(W))*38mm(L)*7.3mm(H)
Control Interface:UART(3.3v)/IR(3.3v-5v)
PACKAGING: White Box with extended Cables, External Antenna, Quick Guide; customized requirements accepted
RECEIVER BOX SIZE: 82mm(W) X 66mm(L) X 24mm(H)
PRIMARY ADVANTAGES :
Well and High Quality Control
Competitive Prices
Earth-friendly Products
Small Order Acceptable
APPLICATIONS:
Car Navigation System
Mobile TV, Car TV, Car Stereo System
PMP, PDA, MP3, MP4
Other handset and portable products
Excellent Mobility Performance
High Receive Sensitivity
Best-in-Class Video Picture Quality
Customized UI & Applications
Competitive prices
Quick shipment
SPECIFICATIONS:
Standard:ATSC-M/H
Power Interface: 12V DC
Analog audio and video interface: Video-CVBS standard 75 ohm output impedance
Analog audio and video interface: Audio: Stereo, 1Vrms
Remote control interface: IR
Input RF Range: 0 ~ 1000MHz
Operating temperature: -20°C to +70°C
Frequency bands:UHF 473MHz-803MHz/ VHF 57MHz-213MHz
RF Input:Impendence 50 Ohm
Analog audio/video interface:
Video:CVBS-(output impendence: 75Ohm)
Audio:two channel stereo
Digital Audio/Video interface:
Video: CCIR656
Audio: 12S
Remote control interface: IR-external IR receiver required
Line-in interface:UART
Power interface: +3.3V
Size: SMT-type module: 40mm(W)*37mm(L)*3.0mm(H)
Connector-type module: 40mm(W))*37mm(L)*8.0mm(H)
Standard: ISDB-T/DVB-T
Power Interface: 12V DC
Analog audio and video interface: Video-CVBS standard 75 ohm output impedance
Analog audio and video interface: Audio: Stereo, 1Vrms
Remote control interface: IR
Input RF Range: 0 ~ 1000MHz
Operating temperature: -20°C to +70°C
Frequency range: isdb-t:UHF470-806MHZ; VHF 174-216MHZ
dvb-t:UHF471-862MHZ; VHF 174-240MHZ
Operating Voltage: 1.8V, 3.3V
Max.operating current: isdb-t:3.3v(220mA);1.8V(38mA)
dvb-t:3.3v(242mA);1.8V(38mA)
Max.power: isdb-t: 795mW
dvb-t:870mW
Input impendance: 50ohm
Structure size: 40mm(W))*38mm(L)*7.3mm(H)
Control Interface:UART(3.3v)/IR(3.3v-5v)
PACKAGING: White Box with extended Cables, External Antenna, Quick Guide; customized requirements accepted
RECEIVER BOX SIZE: 82mm(W) X 66mm(L) X 24mm(H)
PRIMARY ADVANTAGES :
Well and High Quality Control
Competitive Prices
Earth-friendly Products
Small Order Acceptable
APPLICATIONS:
Car Navigation System
Mobile TV, Car TV, Car Stereo System
PMP, PDA, MP3, MP4
Other handset and portable products
Certificate
- FCC
- CE
- BQB
- RoHS
- Emark
