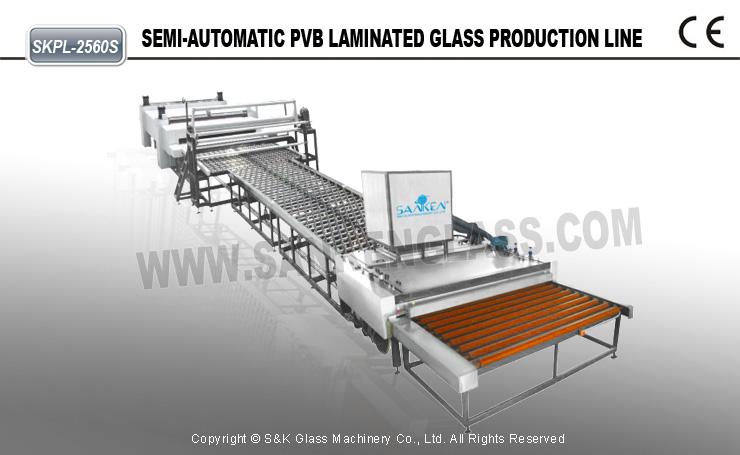

WHOLE PRODUCTION LINE CONSISTS OF THE FOLLOWING COMPONENTS
(1). Glass Washing and Drying Machine
(2). Lamination Positioning and Transmission Machine
(3). Movable Scissor Cup Suction Hanger
(4). PVB Film Unwinding Machine with Driver
(5). Transition Conveying Machine
(6). Prelaminating and Press Section(Quartz -heaters)
(7) Autoclave SKA-2860

3. PARAMENTER OF THE WHOL LINE
Normal Size of Processing Glass: 2440×3660mm (more than 3 pieces)
Min. Length of Processing Glass: 420mm
Min. width of Processing Glass: 300mm
Processing Thickness:6~40mm
Total Length: approx. 26800mm
Current supply: 380V, 50Hz, 3Ph
Total power: approx.141.1 Kw+114KW(Autoclave)
