![](product3.jpg)

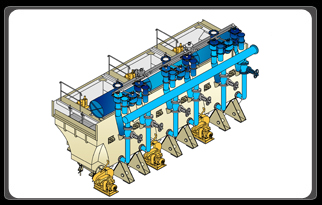

Purpose : for washing ores of ferrous and non-ferrous metals of size 4-100 mm; kimberlite ores of size up to 5 mm:
Effective area of separation, m2 12
Maximum efficiency:
- ores of size 4-100 mm, t/h 80
- kimberlite ores of size up to 5 mm, t/h up to 100
Nominal width of jigging compartment, mm 2000
Excessive air pressure , MPa 0,03-0,05
Pulsation frequency, Hz 0,5-2,5
Overall dimensions, mm:
Length 7300
Width 3400
Height 4815
Mass ( without SPTA, protective coatings and electrical equipment ), kg not more 22000
Effective area of separation, m2 12
Maximum efficiency:
- ores of size 4-100 mm, t/h 80
- kimberlite ores of size up to 5 mm, t/h up to 100
Nominal width of jigging compartment, mm 2000
Excessive air pressure , MPa 0,03-0,05
Pulsation frequency, Hz 0,5-2,5
Overall dimensions, mm:
Length 7300
Width 3400
Height 4815
Mass ( without SPTA, protective coatings and electrical equipment ), kg not more 22000
