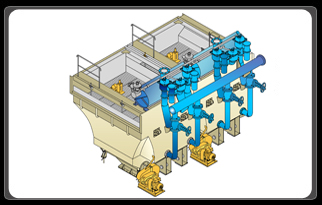

Purpose : for washing coals and anthracites of size 0,5 -13 mm, 13-150 mm, 0,5-150 mm; ores of ferrous and non-ferrous metals of size 4-100 mm; kimberlite ores of size up to 5 mm:


Effective area of separation, m2 12
Maximum efficiency:
- coals and anthracites t/h, for category of washability, t/h:
easy for size 13-150 mm up to 240
easy for size 0,5-150 mm up to 320
medium difficulty for size 13-150 mm up to 180
medium difficulty for size 0,5-150 mm up to 240
- ores of size 4-100 mm, t/h up to 180
- kimberlite ores of size up to 5 mm, t/h up to 180
Nominal width of jigging compartment, mm 3000
Excessive air pressure , MPa 0,025-0,06
Pulsation frequency, Hz 0,5-2,5
Overall dimensions, mm:
Length 4975
Width 3760
Height 4815
Mass ( without SPTA, protective coatings and electrical equipment ), kg not more 18400
