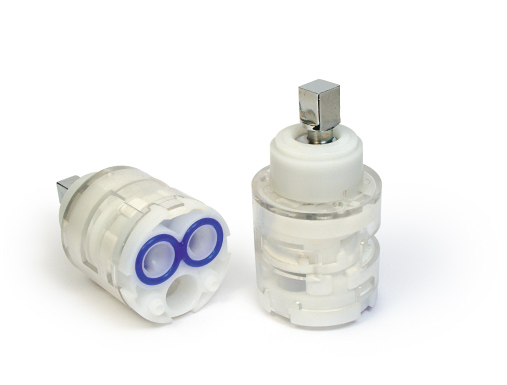

ceramic cartridge
1: Φ45mm faucet ceramic cartridge without distributor (open type)
2: CSA, NSF, WRAS, Water Mark, ACS and KTW certification
3: Hain-Yo is specialized in ceramic cartridge since 1990. We could produce according to customers' pictures or designed drawings.
Characters:
Parameter
Nut lock torque :10~12 Nm
Max. Temperature: 90℃ (194℉)
Min. Temperature: 3.9℃ (39℉)
Recommended Temp: 3.9℃~82℃(39℉~180℉)
Ceramic disc parameter
Ceramic disc by dry pressing: AL2O3 92%~96%
Hardness: 1000 HV
Surface Roughness: Ra0.1~Ra0.3μm
Flatness:
2: CSA, NSF, WRAS, Water Mark, ACS and KTW certification
3: Hain-Yo is specialized in ceramic cartridge since 1990. We could produce according to customers' pictures or designed drawings.
Characters:
Parameter
Nut lock torque :10~12 Nm
Max. Temperature: 90℃ (194℉)
Min. Temperature: 3.9℃ (39℉)
Recommended Temp: 3.9℃~82℃(39℉~180℉)
Ceramic disc parameter
Ceramic disc by dry pressing: AL2O3 92%~96%
Hardness: 1000 HV
Surface Roughness: Ra0.1~Ra0.3μm
Flatness:
Certificate
- NAF
- CAS
- WRAS
- KTW
- ISO9001
Main Products
ceramic cartridge, faucet valve, ceramic disc cartridge
