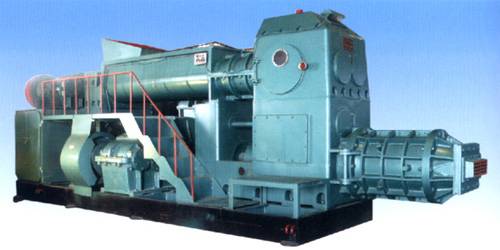

Double stage vacuum extruder is the crucial equipment for the brick making production line, which extrude the ready material into required shape.
Production capacity 16000-20000pcs/hour
Upper stage power 75KW
Lower stage power 220KW
Extruding pressure 4.0Mpa
Degree of vacuum -0.08Mpa
Outside dimension 5450×5960×2700mm
Production capacity 16000-20000pcs/hour
Upper stage power 75KW
Lower stage power 220KW
Extruding pressure 4.0Mpa
Degree of vacuum -0.08Mpa
Outside dimension 5450×5960×2700mm
Specifications
- JKY60/60
- Production Capacity: 16000-20000bricks/hour
- JKY50/50
- Production Capacity: 12000-16000bricks/hour
- JKY45/45
- Production Capacity: 11000-14000bricks/hour
- JKY40/40
- Production Capacity: 9000-12000bricks/hour
- JKY35/35
- Production Capacity: 7000-9000bricks/hour
Features
- Suitable for many kinds of material
- raw material such as clay, gangue, shale, pulverized coal ash, basin sediment, ore waste etc.
- Patent technology
- Adopting the siral pressure plat patent technology on the cluth.
- Long woking life
- wear-resistance meta spray painting technology etc.
- energy saving
