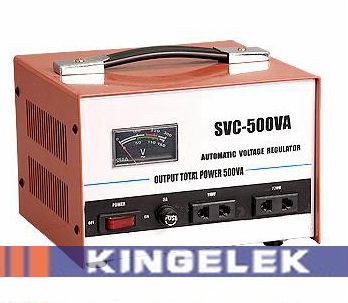

King electric co., Ltd produce SVC Fully Automatic Voltage Regulator consists of voltage regulator, sampling control circuit and service motor as well. It has excellent features, such as small waveform distortion high efficiency, high power factor, free from the effect or frequency variation of supply. It can be widely used in most situations where the voltage stabilization is required.
Specifications:
Input Voltage: 160V-250V 70V-130V
Output voltage: 220V+/-3% with 110V+/-3%
Phase: Single phase
Frequency: 50/60Hz
Response Time: Within 1 sec. Against 10% input voltage deviation
Efficiency: Better than 90%
Ambient temperature: -5C-+40C
Relative humidity: Less than 95%
Waveform distortion: Non-lack fidelity waveform
Features:
High efficiency, high reliability
Universal AC input / Full range
Protections: Short circuit / Over load / Over voltage
Fixed switching frequency at 56 KHz
100% full load burn-in test
Cooling by free air convection
Dimension: 99*97*36mm (L*W*H)
Specifications:
Input Voltage: 160V-250V 70V-130V
Output voltage: 220V+/-3% with 110V+/-3%
Phase: Single phase
Frequency: 50/60Hz
Response Time: Within 1 sec. Against 10% input voltage deviation
Efficiency: Better than 90%
Ambient temperature: -5C-+40C
Relative humidity: Less than 95%
Waveform distortion: Non-lack fidelity waveform
Features:
High efficiency, high reliability
Universal AC input / Full range
Protections: Short circuit / Over load / Over voltage
Fixed switching frequency at 56 KHz
100% full load burn-in test
Cooling by free air convection
Dimension: 99*97*36mm (L*W*H)
