PDC（Polycrystalline Diamond Compact）cutter bit inserts are sintered with selected diamond powder and tungsten carbide under high temperature and ultra-high pressure, PDC cutter bit inserts have high hardness, abrasion resistance and impact resistance, are widely used for oil/gas drill bit, rock drill and coal mining drill bit，also could be used for diamond tools for cutting, grinding, polishing.

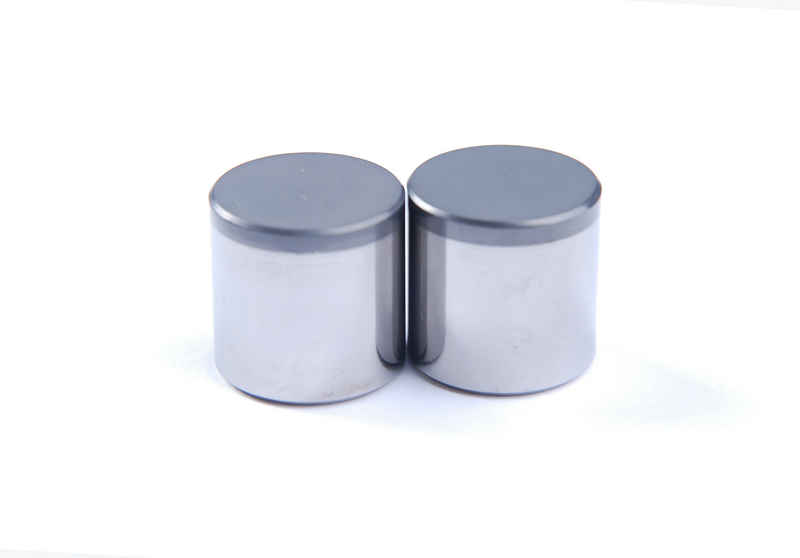

PDC(Polycrystalline Diamond Compact) cutters
Specification 0608 0808 1004 1008 1308 1313 1608 1613 1908 1913 1916
Diameter(mm) 6.00 8.20 10.00 10.00 13.3 13.44 16.00 16.00 19.05 19.05 19.05
Height(mm) 8.00 8.00 4.00 8.00 8.00 13.20 8.00 13.20 8.00 13.20 16.00
Non-standard could be made as your request.
