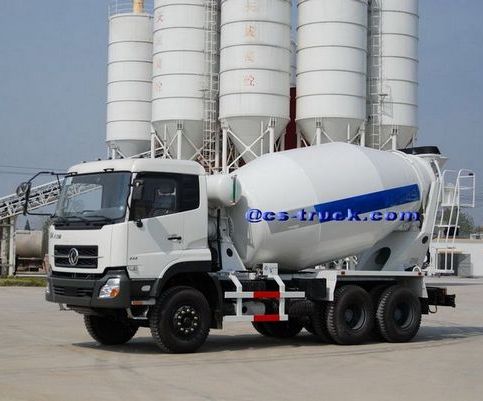

MODEL CSC5250GJBA
Drive System 6×4
SIZE 　
Dimension(mm) 9220×2495×3800
Wheelbase(mm) 4000+1350
WEIGHT 　
G.V.W(kg) 25000
Payload(kg) 11600
Kerb (kg) 13205
ENGINE 　
Engine Model CUMMINS
Engine Type L340-30
Max Output（kw/rpm) 247/2200
Emission(ml) 8900
Torque /Speed(N.m/rpm) 1250/1300±50
TRANSSITION 　
Gearbox FAST 9 speed 9JS150 T-B
Axle Number 3
Front Axle(kg) 7000
Rear Axle(kg) 18000(parallel) with wheel reducer
Main Ratio(rear axle) DENA/5.571
Clutch/steering ￠430mm/ZF8098
Tyre Spec. 11.00R20 bias tyre
Leaf Spring 9/12,10/12,4/12
Cabin D310, A/C, 1 bunk
MIXING DRUM 　
Volume(m3) 11~12
Sloping Angle (°) 12
Filling Ratio ( %) 58.4
Concrete slump(cm) 5~21
Drum Speed(r/min) 0～13
Concrete Landslide 10~260
Remaining ratio( %) ≤2
FLUID DRIVE 　
Oil Pump Italy ARK (PV089MHR)
Motor Italy ARK (MF089V)
Reducer /Ratio TOP (TOP UNION )
Rediator CHINA FAMOUS
