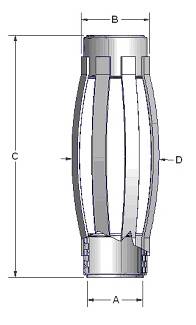

Hinge-Type Centralizers feature channel-formed collar rings with hinges placed within the channel to eliminate hinge damage. This Construction assures that hinges will not rupture while the casing is being run regardless of hole direction or irregularities in formations.
Box springs are made of 1 1/4" x 3/16" 1095 spring steel.
The design of the split collars and narrow bow springs provide maximum effective centralizing of the casing with minimum obstruction to annular flow.
Available in sizes 2 3/8" through 20"
Box springs are made of 1 1/4" x 3/16" 1095 spring steel.
The design of the split collars and narrow bow springs provide maximum effective centralizing of the casing with minimum obstruction to annular flow.
Available in sizes 2 3/8" through 20"
