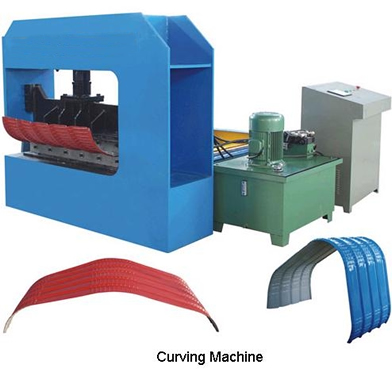

Curving Machine,bending machine,crimping machine. this bending machine is used to crimp the formed corrugated sheets into horizontal stripes through hydraulic crimping mold. The distance between each press will decide the curvature of the arch. It is suitable for edge of buildings ,parking garage, pavilion and various round roofs of buildings.
Main Parameters:
1.Main power:0.85KW
2.Hydraulic power:5.5KW
3.Roll speed:0—10m/min
4.Specification of material:0.3—0.9 mm
5.Punching material:CR12 HRC55-60 surface with chrome
6.Control system: PLC Panasonic
7.Dimension of machine:3000 mm×1400 mm×1400 mm
8、the max bending angle:1200
9、effective width of the sheet: 1000mm
Main Parameters:
1.Main power:0.85KW
2.Hydraulic power:5.5KW
3.Roll speed:0—10m/min
4.Specification of material:0.3—0.9 mm
5.Punching material:CR12 HRC55-60 surface with chrome
6.Control system: PLC Panasonic
7.Dimension of machine:3000 mm×1400 mm×1400 mm
8、the max bending angle:1200
9、effective width of the sheet: 1000mm
Features
