Application Field:
Be used in
* Battery packs
* Pumps
* Cooling fans
* Heating appliance
* Lighting ballast
The Product Sells Point:

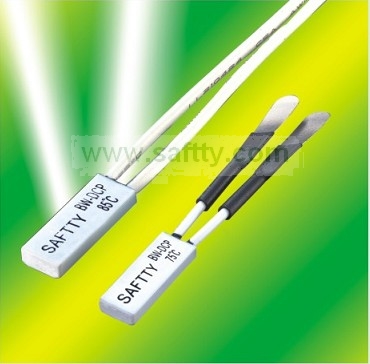

﹡Miniature size
*Positive make and break with snap -action disc
*Suitable for most impregnation processes
*Competitive price
Key Specifications/Special Features :
1.Dimension case: with leading wire 60mm normally
Plastic:16x5.2x3mm
2.Rated voltage: AC250V/24V (50/60Hz)
3.Rated current: 6A
4.Rated open temperature range: 40~145℃, in steps of 5℃
5.Tolerance: (+/-)5℃
6.Resetting temperature : lower than rated open temperature 30℃(+/-)15℃
7.Switching cycles in: 10,000 cycles
8.Contact arrangement:Normally closed
9.Standard contact resistance:≤50mΩ
Third Party Certificates:
VDE,UL, CQC, ROHS
Be used in
* Battery packs
* Pumps
* Cooling fans
* Heating appliance
* Lighting ballast
The Product Sells Point:
﹡Miniature size
*Positive make and break with snap -action disc
*Suitable for most impregnation processes
*Competitive price
Key Specifications/Special Features :
1.Dimension case: with leading wire 60mm normally
Plastic:16x5.2x3mm
2.Rated voltage: AC250V/24V (50/60Hz)
3.Rated current: 6A
4.Rated open temperature range: 40~145℃, in steps of 5℃
5.Tolerance: (+/-)5℃
6.Resetting temperature : lower than rated open temperature 30℃(+/-)15℃
7.Switching cycles in: 10,000 cycles
8.Contact arrangement:Normally closed
9.Standard contact resistance:≤50mΩ
Third Party Certificates:
VDE,UL, CQC, ROHS
Certificate
- VDE
- UL
- CQC
- ROHS
