Application Field:
Be used in
* Battery packs
* Pumps
* Cooling fans
* Heating appliance
* Lighting ballast
The Product Sells Point:
﹡Case not charged,without insulating sleeve(solve installation problem of sleeve off and broken)
* Temperature sensitive
* Better pressure resistance
Key Specifications/Special Features :

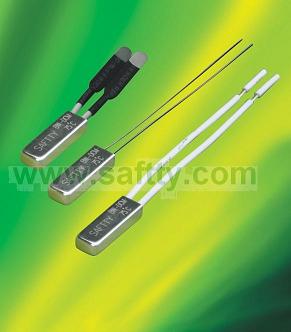

1.Dimension case: with leading wire 60mm normally
Metal:18x5.6x3.6mm
2.Rated voltage: AC250V/24V (50/60Hz)
3.Rated current: 6A
4.Rated open temperature range: 40~145℃, in steps of 5℃
5.Tolerance: (+/-)5℃
6.Resetting temperature : lower than rated open temperature 30℃(+/-)15℃
7.Switching cycles in: 10,000 cycles
8.Contact arrangement:Normally closed&Normally open
9.Standard contact resistance:≤50mΩ
Third Party Certificates:
UL, ROHS
Be used in
* Battery packs
* Pumps
* Cooling fans
* Heating appliance
* Lighting ballast
The Product Sells Point:
﹡Case not charged,without insulating sleeve(solve installation problem of sleeve off and broken)
* Temperature sensitive
* Better pressure resistance
Key Specifications/Special Features :
1.Dimension case: with leading wire 60mm normally
Metal:18x5.6x3.6mm
2.Rated voltage: AC250V/24V (50/60Hz)
3.Rated current: 6A
4.Rated open temperature range: 40~145℃, in steps of 5℃
5.Tolerance: (+/-)5℃
6.Resetting temperature : lower than rated open temperature 30℃(+/-)15℃
7.Switching cycles in: 10,000 cycles
8.Contact arrangement:Normally closed&Normally open
9.Standard contact resistance:≤50mΩ
Third Party Certificates:
UL, ROHS
Certificate
- UL
- ROHS
