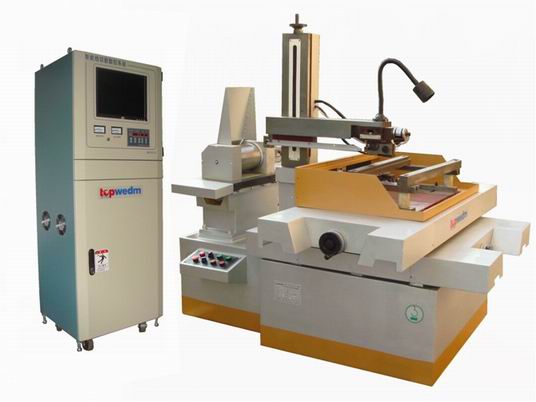

Item Unit DK-7725A
Performance
Best surface finish µm ≤2.5
Machining precision mm 0.015
machining speed mm²/min ≥100
positioning accuracy mm 0.015/1000
Axis
Travel of X,Y,Z mm 250*320*300
Taper angle °/mm ±3/80
Worktank
Dimension  w*d 520*320
Max. Workpiece size  w*d*h 520*320*300
Max. Workpiece weight kg 150
Wire drive system
Wire electrode diameters mm 0.13--0.25
Running speed mm/s 11,000
The machine
Dimension w*d*h 1128*960*1260
Total weight kg 1200
