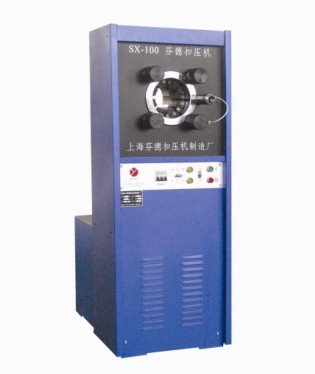

SX-100 Technical Specification
 Max hose ID: 2 1/2＂ 6SP
 Crimping Force: 600 ton
 Die Opening & Closing: +/-34mm
 Opening Without Dies: 140mm
 Motor: 5.5Kw
 Voltage: 380V-50Hz-3Phase
 Full Crimp Cycle: 14S
 Accuracy: 0.01mm
 Un-even: ≤0.15mm
 Weight (w/o oil): 600Kg
 Die-sets supplied: 15 19 23 27 32 38 44 50 56 62 68 78
 Dimensions (L×W×H): 850×550×1550 (mm)
SX-100 Die Chart:
Die No. Range(mm) Length(mm) Die No. Range(mm) Length(mm)
16 16-19 75 44 44-50 85
19 19-23 75 50 50-56 85
23 23-27 75 56 56-62 85
27 27-32 75 62 62-68 85
32 32-38 85 68 68-74 85
38 38-44 85 78 78-84 85
