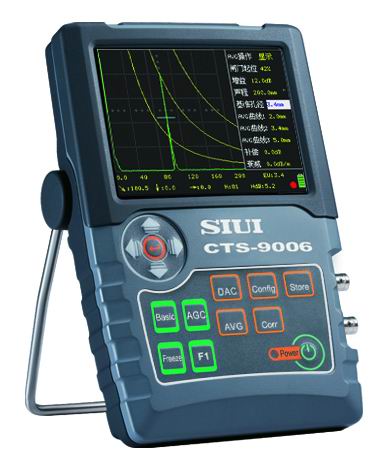

-Max. sampling rate 240MHz; Measurement resolution 0.1mm.
-Operating frequency range: 0.5~15MHz, at least 65dB detection sensitivity surplus.
-20~500Hz PRF with 10 steps adjustable: avoid reverberation signals during flaw detection.
-The AGC (auto gain control) function, together with peak echo and image freeze function, help quickly identify the flaw highest echo, enabling efficient flaw detection.
-The AVG curve can make three lines of different equivalent values with one known flat-bottom hole or large flat-bottom echo.
-The DAC curve works with echo compare function, making echo quantification of different distances and amplitudes more convenient.
-The 5.7" color TFT LCD of wide viewing angle, high brightness and high definition delivers every clear detail.
-Peak Memory function facilitates quick scanning and measurement on workpieces.
-Probe angle (K value) measuring function.
-Three different color schemes can meet the requirements of different application environments and habits.
-Up 300 sets of curve and waveform can be saved for various workpieces and flaw detection standards.
-Operating frequency range: 0.5~15MHz, at least 65dB detection sensitivity surplus.
-20~500Hz PRF with 10 steps adjustable: avoid reverberation signals during flaw detection.
-The AGC (auto gain control) function, together with peak echo and image freeze function, help quickly identify the flaw highest echo, enabling efficient flaw detection.
-The AVG curve can make three lines of different equivalent values with one known flat-bottom hole or large flat-bottom echo.
-The DAC curve works with echo compare function, making echo quantification of different distances and amplitudes more convenient.
-The 5.7" color TFT LCD of wide viewing angle, high brightness and high definition delivers every clear detail.
-Peak Memory function facilitates quick scanning and measurement on workpieces.
-Probe angle (K value) measuring function.
-Three different color schemes can meet the requirements of different application environments and habits.
-Up 300 sets of curve and waveform can be saved for various workpieces and flaw detection standards.
