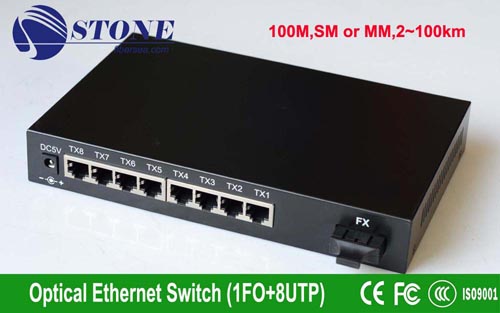

100M,1FO+8UTP, SM/MM,2KM~100KM
◆With one fiber and eight UTP ports, SF1T8 can convert Optical-Electric Ethernet signals between 10/100M UTP interface (TX) and 100M optical fiber interface (FX).
◆Auto negotiation function allows UTP port to auto select 10M or 100M, and Full Duplex or Half Duplex.
◆Support Flow control and Broadcast storm protection
◆Supporting the max 1536 bytes frame
◆Internal Circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
Technical Specifications
◆Operating standards: IEEE802.3u 100Base-TX and 100Base-FX
◆Connector:
UTP: RJ-45,10/100Mbps;
Fiber: SC/FC,100Mbps (Full Duplex)
◆Cable
UTP cable: Cat. 5 (the max distance up to 100m)
Fiber (multimode): 50/125, 62.5/125μm(the max distance up to 2km)
Fiber (singlemode): 8/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
◆Flow control
Full Duplex: IEEE802.3x flow control
Half Duplex: bake pressure flow control
◆LED Light: PWR, FX Link/Act, TP1~TP8 FDX, TP1~
◆Auto negotiation function allows UTP port to auto select 10M or 100M, and Full Duplex or Half Duplex.
◆Support Flow control and Broadcast storm protection
◆Supporting the max 1536 bytes frame
◆Internal Circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
Technical Specifications
◆Operating standards: IEEE802.3u 100Base-TX and 100Base-FX
◆Connector:
UTP: RJ-45,10/100Mbps;
Fiber: SC/FC,100Mbps (Full Duplex)
◆Cable
UTP cable: Cat. 5 (the max distance up to 100m)
Fiber (multimode): 50/125, 62.5/125μm(the max distance up to 2km)
Fiber (singlemode): 8/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
◆Flow control
Full Duplex: IEEE802.3x flow control
Half Duplex: bake pressure flow control
◆LED Light: PWR, FX Link/Act, TP1~TP8 FDX, TP1~
