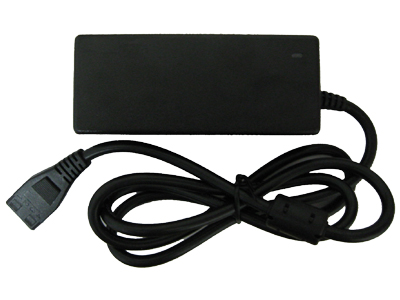

Harddisk power supply
12V/5V-2A dual voltage output for Hardisk power supply
Input Condition : 100 to 240VAC 50/60 Hz 1.0A Max
Input Rated Voltage : 100 to 240VAC
Input Voltage Range : 90 to 264VAC
Input Rated Frequency : 50/60Hz
Input Frequency Range : 47Hz to 63Hz
Input Current : 1.0A Max
Input Inrush Current : 30A Max
Input No Load Power Consumption : 0.5W Max At 115Vac/230Vac
Efficiency : 80% Min
Rated Output Power: 34W
Output Voltage & Current : 12V/5V-2A Dual voltage
Output Line Regulation : ±1%
Output Load Regulation : ±5%
Output Over Shoot : 10% Max
Output Ripple And Noise : 1% Max
Output Rising Time : 20ms Max At 115Vac
Output Hold up Time : 8ms Min At 230Vac
Protection : OCP OVP SCP OPP
Dielectric Withstand Voltage : 3KV 5mA 60s
Leakage Current : 0.25 mA At 230Vac
Operating Temperature: 0 to 70℃
Storage Temperature: -10 to 85℃
Relative Humidity: 5 to 95%
Input Condition : 100 to 240VAC 50/60 Hz 1.0A Max
Input Rated Voltage : 100 to 240VAC
Input Voltage Range : 90 to 264VAC
Input Rated Frequency : 50/60Hz
Input Frequency Range : 47Hz to 63Hz
Input Current : 1.0A Max
Input Inrush Current : 30A Max
Input No Load Power Consumption : 0.5W Max At 115Vac/230Vac
Efficiency : 80% Min
Rated Output Power: 34W
Output Voltage & Current : 12V/5V-2A Dual voltage
Output Line Regulation : ±1%
Output Load Regulation : ±5%
Output Over Shoot : 10% Max
Output Ripple And Noise : 1% Max
Output Rising Time : 20ms Max At 115Vac
Output Hold up Time : 8ms Min At 230Vac
Protection : OCP OVP SCP OPP
Dielectric Withstand Voltage : 3KV 5mA 60s
Leakage Current : 0.25 mA At 230Vac
Operating Temperature: 0 to 70℃
Storage Temperature: -10 to 85℃
Relative Humidity: 5 to 95%
Certificate
- CE
