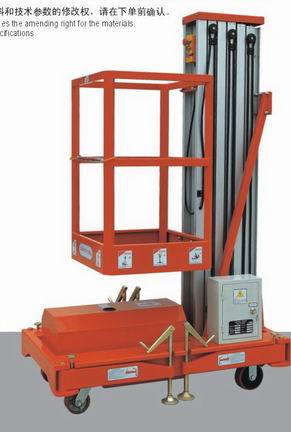

_01_Mobile Aluminium Work Platform (single mast)

Model AWP6-1000 AWP8-1000 AWP10-1000
Max. platform height(mm) 6000 8000 10000
Working height(mm) 7700 9700 11700
Platfoem size L*W(mm) 650*600
Machine dimension L*w*H(mm) 1330*800*1950
Lift rated capacity(kg) 150 125 125
Overall net weight(KG) (AC)300 350 400 (DC)330 380 430

_02_Mobile Aluminium Work Platform (dual mast)

Model AWP6-2000 AWP8-2000 AWP10-2000 AWP12-2000
Max. platform height(mm) 6000 8000 10000 12000
Working height(mm) 7700 9700 11700 13700
Lift rated capacity(kg) 300 300 250 200
Overall net weight(KG) (AC)480 580 680 780 (DC)510 610 710 810
Lift motor(v/kw) (AC)200/1.5 (DC)24/2.0
