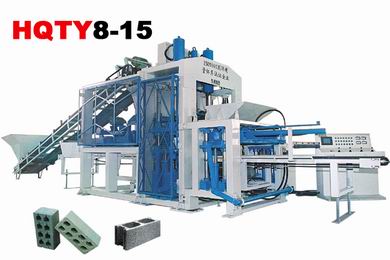

Model Number: HTQ8-15 fully automatic line Concrete Block Making Machine;
Figures:
Includes:
Mixing system;
Batching system;
Forming system;
Elevator;
Finger cart;
Automatic cuber Packing system;
Curing room;
Technical data of block machine:
Pallet size: 940x860 x 25mm (bamboo pallets);
Cycle time: 15 to 20 seconds;
Major vibration type: Table&Ram vibration;
Power: 34kW;
Rating pressure: 15mPa;
Host machine weight: 12.5T;
Host machine Dimensions: 3000x2200x2950mm;
Virbration force: 60kN;
Virbration frequency: 48Hz;
Machine Room Area: 180 square meter;
Factory Area: 800square meter;
Workers/working day: 10 workers;
Machine Output:
Item specification qty/8 hour
Hollow Block 390x190x190mm 11520pcs
Solid Block 240x115x53mm 56160pcs
Porous Block 240x115x90mm 25920pcs
Model Number: HTQ8-15 fully automatic line Concrete Block Making Machine;
Figures:
Includes:
Mixing system;
Batching system;
Forming system;
Elevator;
Finger cart;
Automatic cuber Packing system;
Curing room;
Technical data of block machine:
Pallet size: 940x860 x 25mm (bamboo pallets);
Cycle time: 15 to 20 seconds;
Major vibration type: Table&Ram vibration;
Power: 34kW;
Rating pressure: 15mPa;
Host machine weight: 12.5T;
Host machine Dimensions: 3000x2200x2950mm;
Virbration force: 60kN;
Virbration frequency: 48Hz;
Machine Room Area: 180 square meter;
Factory Area: 800square meter;
Workers/working day: 10 workers;
Machine Output:
Item specification qty/8 hour
Hollow Block 390x190x190mm 11520pcs
Solid Block 240x115x53mm 56160pcs
Porous Block 240x115x90mm 25920pcs
Features
- automatic
- automatic hydralic concrete block making machine
Main Products
block making machine,brick making machine,concrete mixer
