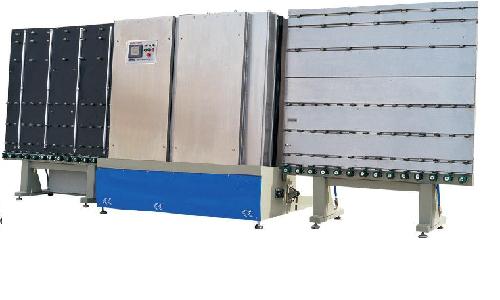

Open top glass washing machine KDQ1600
Description:
PLC control system with touch screen operation interface
Apply water-proof shaft and bearing in the drying section
Perfect Low-E glass washing performance
Adopt interval working design for saving energy
Two pairs of brush
Parameter:
1.Power：3P 380V/1P+N 220V 50Hz 22.5Kw
2.Water： consumption 0.5t/h water conductivity≤50μs/cm
3.Air pressure0.6Mpa
4.Max glass size：1800×2000 mm
5.Min glass size：200×500mm
6.Glass thickness：3-12mm
7.Glass washing speed：0-8 m/min
8.Brush：2 pairs
9.Outside dimension：6500mm × 1600mm ×2000mm
Description:
PLC control system with touch screen operation interface
Apply water-proof shaft and bearing in the drying section
Perfect Low-E glass washing performance
Adopt interval working design for saving energy
Two pairs of brush
Parameter:
1.Power：3P 380V/1P+N 220V 50Hz 22.5Kw
2.Water： consumption 0.5t/h water conductivity≤50μs/cm
3.Air pressure0.6Mpa
4.Max glass size：1800×2000 mm
5.Min glass size：200×500mm
6.Glass thickness：3-12mm
7.Glass washing speed：0-8 m/min
8.Brush：2 pairs
9.Outside dimension：6500mm × 1600mm ×2000mm
Specifications
.1800X2000mmFeatures
.pass CECertificate
- CE
