"Product Information

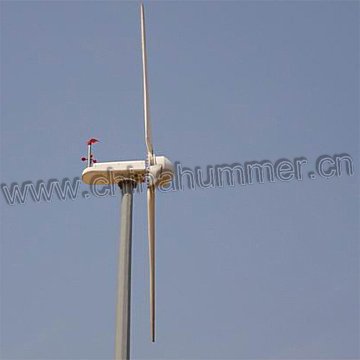

Model: 3kw
H-4.8-3kw Wind power Generator which features high efficiency and low rated wind speed introducing several patented technologies and some special materials. All of the wind generators are matched with wind-solar hybrid inverter controller, which can connect solar panel within 1500w simultaneously. Please contact us for the detail
The off-grid wind power generator is matched with 15pcs 12VDC batteries in series, and on-grid system can connect to state grid.
Application
Well used in:
● Housing
● Telecommunications Station
● TV Transfer Station
● Monitoring Station (military, hydrology, observatory)
● Water-pumping Station
Technical Parameter
Rated power(W) 3000
Maximum output power(W) 4500
Charging voltage (V) DC 180V
Blade quantity 3
Rotor blade material GRP
Rotor blade diameter(m) 4.8
Start-up wind speed (m/s) 2.5
Rated wind speed (m/s) 10
Rated rotating rate (r/min) 400
Wind energy utilizing ratio (Cp) 0.4
Generator output single-phase
frequency conversion AC
Rated charging current (A) 16
The maximum charging current (in a short time )(A) 28
output AC frequency (Hz) 0~360
Generator efficiency >0.8
Wireless tower diameter(mm) Ø 397×Ø 137×12000 (2pcs)
Guy tower diameter(mm) Ø140×3000×4 (4pcs)
Tower height(m) 12m
The weight of generator(kg) 60kg
Battery 12V 150Ah/200Ah 15pcs
"
Model: 3kw
H-4.8-3kw Wind power Generator which features high efficiency and low rated wind speed introducing several patented technologies and some special materials. All of the wind generators are matched with wind-solar hybrid inverter controller, which can connect solar panel within 1500w simultaneously. Please contact us for the detail
The off-grid wind power generator is matched with 15pcs 12VDC batteries in series, and on-grid system can connect to state grid.
Application
Well used in:
● Housing
● Telecommunications Station
● TV Transfer Station
● Monitoring Station (military, hydrology, observatory)
● Water-pumping Station
Technical Parameter
Rated power(W) 3000
Maximum output power(W) 4500
Charging voltage (V) DC 180V
Blade quantity 3
Rotor blade material GRP
Rotor blade diameter(m) 4.8
Start-up wind speed (m/s) 2.5
Rated wind speed (m/s) 10
Rated rotating rate (r/min) 400
Wind energy utilizing ratio (Cp) 0.4
Generator output single-phase
frequency conversion AC
Rated charging current (A) 16
The maximum charging current (in a short time )(A) 28
output AC frequency (Hz) 0~360
Generator efficiency >0.8
Wireless tower diameter(mm) Ø 397×Ø 137×12000 (2pcs)
Guy tower diameter(mm) Ø140×3000×4 (4pcs)
Tower height(m) 12m
The weight of generator(kg) 60kg
Battery 12V 150Ah/200Ah 15pcs
"
Features
.swift, small, lightCertificate
