"Product Information
Model: 5kw

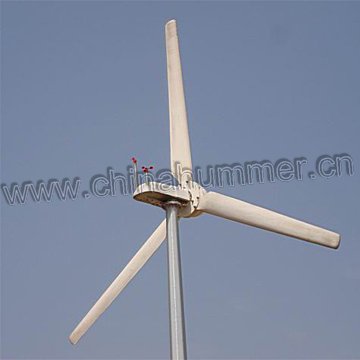

H-6.4-5kw Wind power Generator which features high efficiency and low rated wind speed introducing several patented technologies and some special materials. All of the wind generators are matched with wind-solar hybrid inverter controller, which can connect solar panel within 2500w simultaneously. Please contact us for the detail
The off-grid wind power generator is matched with 20pcs 12VDC batteries in series, and on-grid system can connect to state grid.
Application
Well used in:
● Housing
● Telecommunications Station
● TV Transfer Station
● Monitoring Station (military, hydrology, observatory)
● Water-pumping Station
Technical Parameter
Rated power(W) 5000
Maximum output power(W) 7500
Charging voltage (V) DC 240V
Blade quantity 3
Rotor blade material GRP
Rotor blade diameter(m) Ø6.4
Start-up wind speed (m/s) 2.5
Rated wind speed (m/s) 10
Rated rotating rate (r/min) 240
Wind energy utilizing ratio (Cp) 0.4
Generator output single-phase
frequency conversion AC
Rated charging current (A) 20
The maximum charging current (in a short time )(A) 32
output AC frequency (Hz) 0~360
Generator efficiency >0.8
Free standing tower diameter(mm) Ф495×Ф185×12000(2pcs)
Guy tower diameter(mm) Ф220×3000×6 (4pcs)
Tower height(m) 12m
The weight of generator(kg) 147kg
Battery 12V 150Ah/200Ah 20pcs
"
Model: 5kw
H-6.4-5kw Wind power Generator which features high efficiency and low rated wind speed introducing several patented technologies and some special materials. All of the wind generators are matched with wind-solar hybrid inverter controller, which can connect solar panel within 2500w simultaneously. Please contact us for the detail
The off-grid wind power generator is matched with 20pcs 12VDC batteries in series, and on-grid system can connect to state grid.
Application
Well used in:
● Housing
● Telecommunications Station
● TV Transfer Station
● Monitoring Station (military, hydrology, observatory)
● Water-pumping Station
Technical Parameter
Rated power(W) 5000
Maximum output power(W) 7500
Charging voltage (V) DC 240V
Blade quantity 3
Rotor blade material GRP
Rotor blade diameter(m) Ø6.4
Start-up wind speed (m/s) 2.5
Rated wind speed (m/s) 10
Rated rotating rate (r/min) 240
Wind energy utilizing ratio (Cp) 0.4
Generator output single-phase
frequency conversion AC
Rated charging current (A) 20
The maximum charging current (in a short time )(A) 32
output AC frequency (Hz) 0~360
Generator efficiency >0.8
Free standing tower diameter(mm) Ф495×Ф185×12000(2pcs)
Guy tower diameter(mm) Ф220×3000×6 (4pcs)
Tower height(m) 12m
The weight of generator(kg) 147kg
Battery 12V 150Ah/200Ah 20pcs
"
Features
.small, light and swiftMain Products
