small,low noise and virbaration

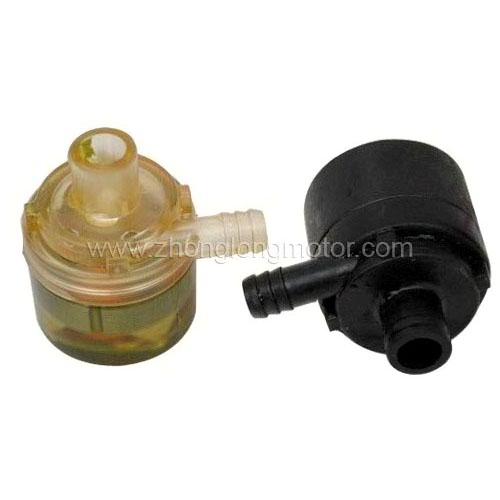

25-01 brushless DC coffee maker pump
Feature:
1. Life: Expected life span is at least 20000 hours.
2. Low noise: 35dB, far from 10cm distance.
3. Duty work: The pump can sustain heavy uty work for a day. Continuous operation. . Working conditions: Applying to indoor and outdoor under temperature 40degC.
5.Working temperature: Within 100 degC.
6. It is waterproof but not submersible.
Application:
1. Coffee maker
2. Tea pot
3. Fountain
4. Water ciculation system
Specification:
Model Working voltage Working current Max-Static lift Max-Static flowrate Temp Remarks
25#-01 4.5VDC 350mA 0.7 meter 0.8 L/min ≤100degC
6 VDC 300mA 1 meter 1 L/min ≤100degC
9 VDC 300mA 1.5 meter 1.2 L/min ≤100degC
12 VDC 300mA 2 meter 1.5L/min ≤100degC
The tolerance of technical parameters above is ±10%
Remarks:The technical parameters above is only for your reference, for more detailes, please feel free to contact us
Structure dimensions
Model Dimension(mm) Inlet OD(mm) Outlet OD(mm) Remarks
25#-01 32*26*36 9 7 both for white and black items
Feature:
1. Life: Expected life span is at least 20000 hours.
2. Low noise: 35dB, far from 10cm distance.
3. Duty work: The pump can sustain heavy uty work for a day. Continuous operation. . Working conditions: Applying to indoor and outdoor under temperature 40degC.
5.Working temperature: Within 100 degC.
6. It is waterproof but not submersible.
Application:
1. Coffee maker
2. Tea pot
3. Fountain
4. Water ciculation system
Specification:
Model Working voltage Working current Max-Static lift Max-Static flowrate Temp Remarks
25#-01 4.5VDC 350mA 0.7 meter 0.8 L/min ≤100degC
6 VDC 300mA 1 meter 1 L/min ≤100degC
9 VDC 300mA 1.5 meter 1.2 L/min ≤100degC
12 VDC 300mA 2 meter 1.5L/min ≤100degC
The tolerance of technical parameters above is ±10%
Remarks:The technical parameters above is only for your reference, for more detailes, please feel free to contact us
Structure dimensions
Model Dimension(mm) Inlet OD(mm) Outlet OD(mm) Remarks
25#-01 32*26*36 9 7 both for white and black items
