The 50 ohm communication cables are high performance, flexible, low loss, designed for use in wireless system such as: Mobile Antennas, Base station & Antenna jumpers, Tower feeder runs, In-building runs, Building top installations...etc.
Features
- Gas injected foam PE insulated.

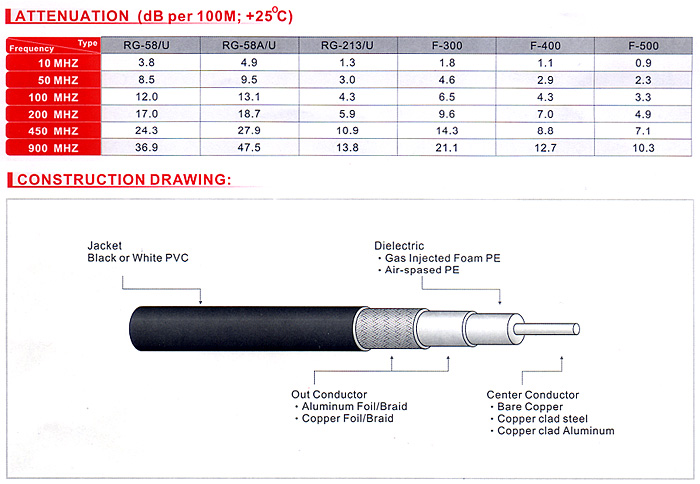

- Low attenuation value.
- 50 ohm.
Cat. No. | Inner Cond. (mm) | Dielectric (mm) | Outer Cond. (mm) | Jacket OD (mm) | Nom. Imp (ohm) | Velocity of Prop. | Capacitance pF/m |
---|---|---|---|---|---|---|---|
02038 RG-58/U | 1/1.0 Bare copper solid | 2.90 FPE Gas injected | Alum./Foil + 80/0.12 TC | 5.0 PVC | 50±3 | 78% | 83.0 |
02038A RG-58A/U | 19/0.203 Tinned copper strand | 2.90 FPE Gas injected | Alum./Foil + 112/0.12 TC | 5.0 PVC | 50±3 | 75% | 85.3 |
02040 RG-213/U | 1/2.74 copper clad steel | 7.26 PE Air-spaced | Alum./Foil + 192/0.18 TC | 10.3 PVC | 50±3 | 84% | 80.7 |
02031A F-300 | 1/1.78 Bare copper solid | 4.83 FPE Gas injected | Alum./Foil + 96/0.12 TC | 7.3 PVC | 50±3 | 85% | 80.0 |
02032A F-400 | 1/2.77 Copper clad aluminum | 7.24 FPE Gas injected | Alum./Foil + 168/0.16 TC | 10.3 PVC | 50±3 | 85% | 78.4 |
02033A F-500 | 1/3.61 Copper clad aluminum | 9.40 FPE Gas injected | Alum./Foil + 192/0.18 TC | 12.7 PE | 50±3 | 86% | 77.4 |
