MAPLE WILL CO makes its own recessed handles, corners, recessed catches and the majority of Hardwares used on the cases. We would like to say that there is no problem for us to make the cases exactly same as you need. Please specify the size of cases and indicate of material you required.
IN NO JOKE TO RUN YOUR PROJECT INDEEN!
IN NO JOKE TO RUN YOUR PROJECT INDEEN!

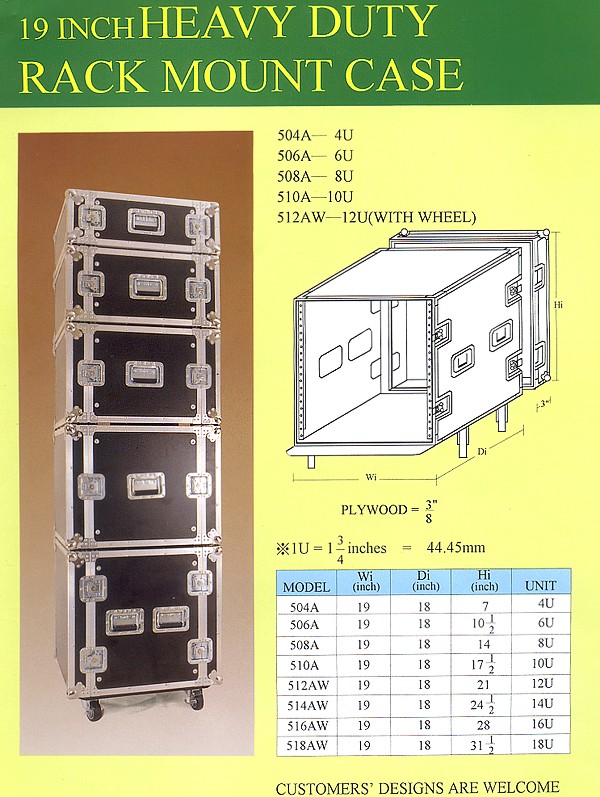

Specifications
- Plywood: 3/8"
- 1U = 1 3/4inches = 44.45mm
| Model | Wi (inch) | Di (inch) | Hi (inch) | Unit |
|---|---|---|---|---|
| 504A | 19 | 18 | 7 | 4U |
| 506A | 19 | 18 | 10 1/2 | 6U |
| 508A | 19 | 18 | 14 | 8U |
| 510A | 19 | 18 | 17 1/2 | 10U |
| 512AW | 19 | 18 | 21 | 12U |
| 514AW | 19 | 18 | 24 1/2 | 14U |
| 516AW | 19 | 18 | 28 | 16U |
| 518AW | 19 | 18 | 31 1/2 | 18U |
Main Products
19 Inch Heavy Duty Rack Mount Case, 19 Inch Rack Mount Case, Mixer/Amp Rack Case
