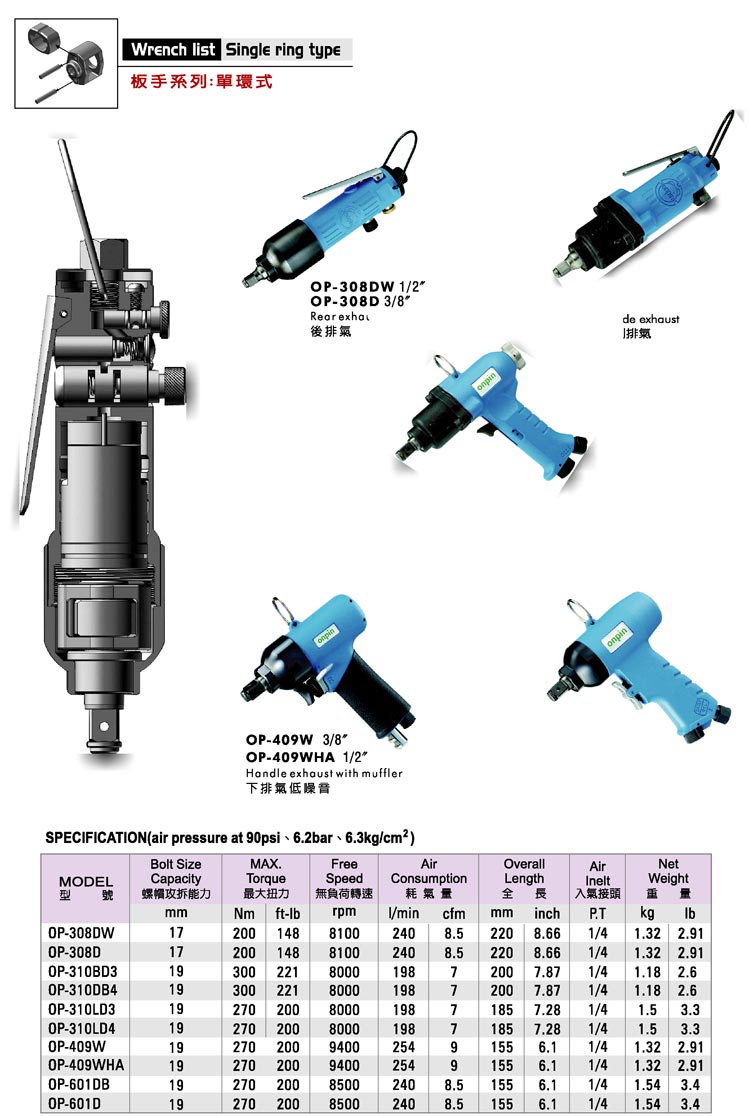

Single Ring Type

Product ID: OP-308DW, OP-308D, OP-310DB3, OP-310DB4, OP-310LD3, OP-310LD4, OP-409W, OP-409WHA, OP-601DB, OP-601D

Send Inquiry
MODEL Bolt Size
Capacity
MAX.
Torque
MAX.
Torque
Free
Speed
Air
Consumption
Air
Consumption
Overall
Length
Overall
Length
Air
Inelt
Net
Weight
Net
Weight
mm Nm ft-lb rpm 1/min cfm mm inch P.T kg lb
OP-308DW 17 200 148 8100 240 8.5 220 8.66 1/4 1.32 2.91
OP-308D 17 200 148 8100 240 8.5 220 8.66 1/4 1.32 2.91
OP-310BD3 19 300 221 8000 198 7 200 7.87 1/4 1.18 2.6
OP-310DB4 19 300 221 8000 198 7 200 7.87 1/4 1.18 2.6
OP-310LD3 19 270 200 8000 198 7 185 7.28 1/4 1.5 3.3
OP-310LD4 19 270 200 8000 198 7 185 7.28 1/4 1.5 3.3
OP-409W 19 270 200 9400 254 9 155 6.1 1/4 1.32 2.91
OP-409WHA 19 270 200 9400 254 9 155 6.1 1/4 1.32 2.91
OP-601DB 19 270 200 8500 240 8.5 155 6.1 1/4 1.54 3.4
OP-601D 19 270 200 8500 240 8.5 155 6.1 1/4 1.54 3.4
Specifications
  • Air pressure at 90psi, 6.2bar, 6.3kg/cm2
  • OP-308DW 1/2": Rear exhaust
  • OP-308D 3/8": Rear exhaust
  • OP-310DB3 3/8": Side exhaust
  • OP-310DB4 1/2": Side exhaust
  • OP-310LD3 3/8": Side exhaust
  • OP-310LD4 1/2": Side exhaust
  • OP-409W 3/8": Handle exhaust with muffler
  • OP-409WHA 1/2": Handle exhaust with muffler
  • OP-601DB 3/8": Side exhaust
  • OP-601D 1/2": Side exhaust
