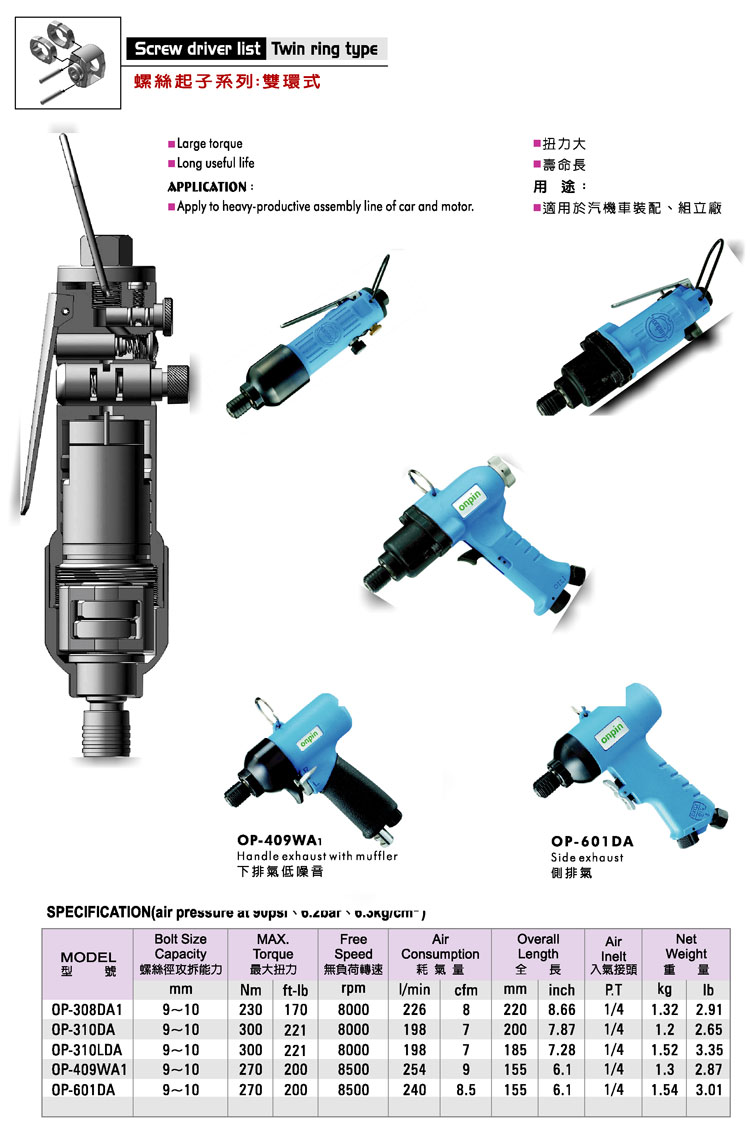

Twin Ring Type (OP-308DA1, OP-310DA, OP-310LDA, OP-409WA1, OP-601DA)

Twin ring type

Twin Ring Type

Product ID: OP-308DA1, OP-310DA, OP-310LDA, OP-409WA1, OP-601DA

(1) Large torque.
(2) Long useful life.
Application:
Apply to heavy-productive assembly line of car and motor.

MODEL	Bolt Size Capacity	MAX. Torque	MAX. Torque	Free Speed	Air Consumption	Air Consumption	Overall Length	Overall Length	Air Inelt	Net Weight	Net Weight
	mm	Nm	ft-lb	rpm	1/min	cfm	mm	inch	P.T	kg	lb
OP-308DA1	9~10	230	170	8000	226	8	220	8.66	1/4	1.32	2.91
OP-310DA	9~10	300	221	8000	198	7	200	7.87	1/4	1.2	2.65
OP-310LDA	9~10	300	221	8000	198	7	185	7.28	1/4	1.52	3.35
OP-409WA1	9~10	270	200	8500	254	9	155	6.1	1/4	1.3	2.87
OP-601DA	9~10	270	200	8500	240	8.5	155	6.1	1/4	1.54	3.01
