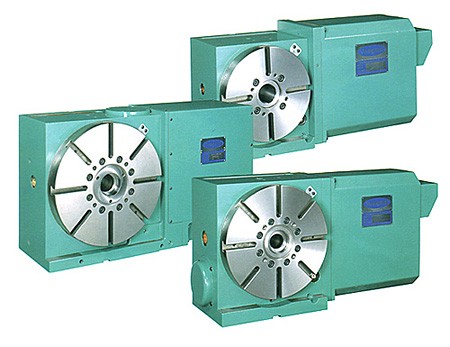

Features
- For horizontal and vertical operations.
- Applied for the 4th axis.
- Worm and worm gear drive.
- Single shaft configuration.
- Hydraulic brake.
Model | LNC-100 | LNC-170R | LNC-200R | LNC-250R | LNC-320R | LNC-400R | LNC-500R | LNC-630R | LNC-800R |
---|---|---|---|---|---|---|---|---|---|
Table diameter | 105 | 170 | 200 | 250 | 320 | 400 | 500 | 630 | 800 |
Vertical center height | 105 | 135 | 135 | 170 | 210 | 250 | 310 | 400 | 480 |
Horizontal overall height | 145 | 190 | 195 | 200 | 230 | 250 | 290 | 320 | 340 |
Vertical overall height | 163 | 225 | 240 | 300 | 375 | 455 | 570 | 725 | 880 |
Through hole diameter | 45 | 30 | 40 | 32 | 46 | 51 | 130 | 130 | 130 |
T-slot width | 12 | 12 | 12 | 12 | 14 | 14 | 18 | 18 | 20 |
Guide slot width | 14 | 14 | 14 | 18 | 18 | 18 | 20 | 20 | 20 |
Servo motor type: Mitsubishi | HA-33 | HA-40C | HA-40C | HA-40C | HA-80C | HA-100C | HA-100C | HA-200C | HA-200C |
Servo motor type: Fanuc | AC-OS, alpha 3 | AC-OS, alpha 3 | AC-OS, alpha 3 | AC-OS, alpha 3 | AC-5S, alpha 6 | AC-10S, alpha 12 | AC-10S, alpha 12 | AC-20S, alpha 22 | AC-20S, alpha 22 |
Teeth ratio | 90:1 | 90:1 | 90:1 | 120:1 | 120:1 | 180:1 | 180:1 | 180:1 | 180:1 |
Min. index unit (°) | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 |
Max. speed (R.P.M) | 33.3 | 22.2 | 22.2 | 16.6 | 16.6 | 11.1 | 11.1 | 11.1 | 11.1 |
Clamping Way | Pneumatic 6Kgf/cm² | Pneumatic 6Kgf/cm² | Pneumatic 6Kgf/cm² | 91 | 125 | 183 | 252 | 453 | 482 |
Horizontal loading capacity (kg) | 75 | 150 | 200 | 300 | 350 | 500 | 600 | 800 | 1,000 |
Vertical loading capacity (kg) | 35 | 75 | 100 | 125 | 150 | 300 | 350 | 400 | 500 |
Index accuracy (sec) | 25 | 25 | 20 | 15 | 15 | 15 | 15 | 15 | 15 |
Repetitive accuracy (sec) | ± 2 | ± 2 | ± 2 | ± 2 | ± 2 | ± 2 | ± 2 | ± 2 | ± 2 |
Max. cutting torque (kg*m) | 18 | 23 | 23 | 45 | 78 | 160 | 230 | 320 | 350 |
