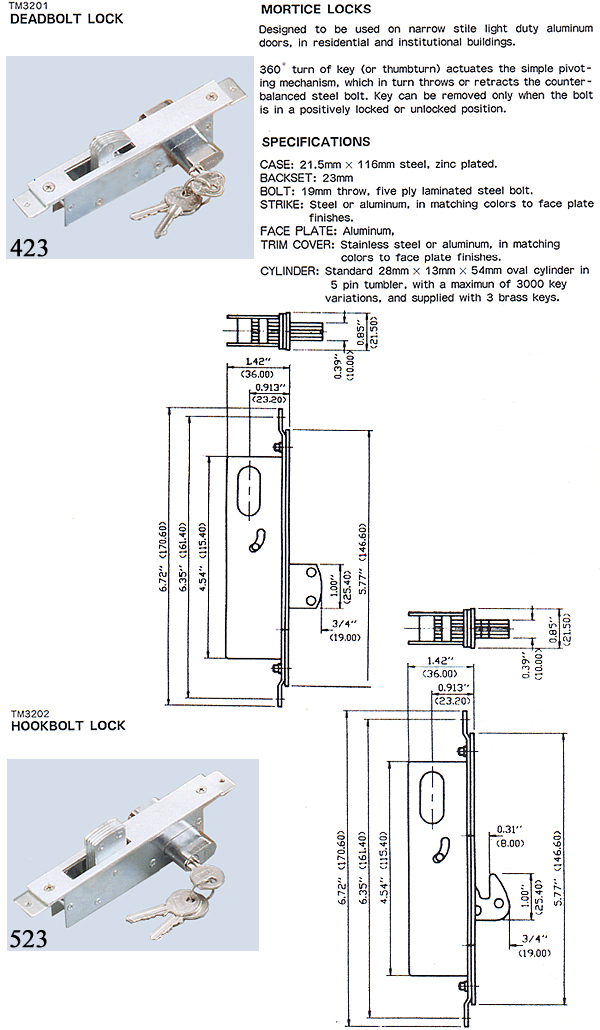

Mortice locks:
Designed to be used on narrow stile light duty aluminum doors, in residential and institutional buildings.
360° turn of key (or thumb-turn) actuates the simple pivoting mechanism, which in turn throws or retracts the counterbalanced steel bolt. Key can be removed only when the bolt is in a positively locked or unlocked position.
Designed to be used on narrow stile light duty aluminum doors, in residential and institutional buildings.
360° turn of key (or thumb-turn) actuates the simple pivoting mechanism, which in turn throws or retracts the counterbalanced steel bolt. Key can be removed only when the bolt is in a positively locked or unlocked position.
Specifications
- Case: 21.5mm x 116mm steel, zinc plated
- Backset: 23mm
- Bolt: 19mm throw, five ply laminated steel bolt
- Strike: steel or aluminum, in matching colors to face plate finishes
- Face Plate: aluminum
- Trim Cover: stainless steel or aluminum, in matching colors to face plate finishes.
- Cylinder: standard 28mm x 13mm x 54mm oval cylinder in 5 pin tumbler, with a maximum of 3,000 key variations, and supplied with 3 brass keys.
