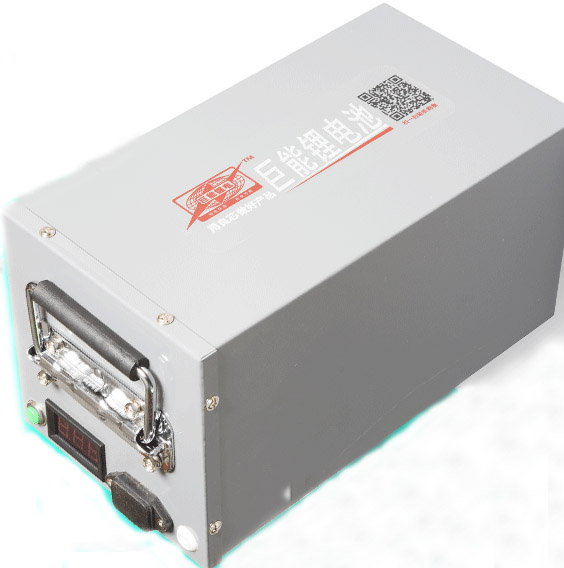

lifepo4 battery, lithium battery, steel case, BMS
Battery specification:
Nominal voltage 25.6V
Nominal capacity 30Ah/40Ah/50Ah/56Ah @0.5C Discharge
Dimension
30Ah: 280*150*150mm
40Ah: 280*150*150mm
50Ah: 280*200*150mm
56Ah: 280*200*150mm
Weight
30Ah: 9kg
40Ah: 11kg
50Ah: 15kg
56Ah: 17kg
Working voltage 20-29.2V
Discharge rate Continuous:≤1c Max:3c/5s
Lifespan ≥2000 cycles
Charge rate ≤1c
Suggested discharge & charge rate 0.5c & 0.5c
Operating temperature Charging: 0°C ~ 45°C
Discharging: -20°C ~60°C
Battery advantage:
1.4 times than lead acid battery in lifespan,
2.1/4 times than lead acid battery in weight and size
Company introduction
CTS is a pioneer in the lithium battery market and a unique lithium battery solutions company. LiFePo4 and NMC(Li(NiCoMn)O2) are the major material.
Lithium polymer battery modules in parallel or in series, can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station, E-scooter, E-tools,unmanned airplane, golf ca
Nominal voltage 25.6V
Nominal capacity 30Ah/40Ah/50Ah/56Ah @0.5C Discharge
Dimension
30Ah: 280*150*150mm
40Ah: 280*150*150mm
50Ah: 280*200*150mm
56Ah: 280*200*150mm
Weight
30Ah: 9kg
40Ah: 11kg
50Ah: 15kg
56Ah: 17kg
Working voltage 20-29.2V
Discharge rate Continuous:≤1c Max:3c/5s
Lifespan ≥2000 cycles
Charge rate ≤1c
Suggested discharge & charge rate 0.5c & 0.5c
Operating temperature Charging: 0°C ~ 45°C
Discharging: -20°C ~60°C
Battery advantage:
1.4 times than lead acid battery in lifespan,
2.1/4 times than lead acid battery in weight and size
Company introduction
CTS is a pioneer in the lithium battery market and a unique lithium battery solutions company. LiFePo4 and NMC(Li(NiCoMn)O2) are the major material.
Lithium polymer battery modules in parallel or in series, can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station, E-scooter, E-tools,unmanned airplane, golf ca
Main Products
EV battery, BMS, lifepo4 battery, NMC battery, lithium battery
