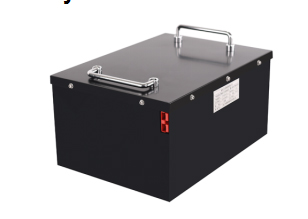

Lithium Ion LiFePO4 24V 100AH 200AH 2.5kwh 5kwh Solar Energy Storage Battery
Product ID: PF24100/200
Send Inquiry
Battery specification
Nominal voltage 25.6V
Nominal capacity 100Ah/200Ah @0.5C Discharge
Dimension
100Ah: 250*160*300mm
200Ah:320*200*250mm
Weight
100Ah: 20kg
200Ah: 32kg
Working voltage 20-29.2V
Discharge rate Continuous:≤1c Max:3c/5s
Lifespan ≥2000 cycles
Charge rate ≤1c
Suggested discharge & charge rate 0.5c & 0.5c
Operating temperature Charging: 0°C ~ 45°C
Discharging: -20°C ~60°C
Company introduction
CTS is a pioneer in the lithium battery market and a unique lithium battery solutions company. LiFePo4 and NMC(Li(NiCoMn)O2) are the major material.
Lithium polymer battery modules in parallel or in series, can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station, E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.
Contact information:
rebecca@cts-tech.ltd
86 15773256831
Nominal voltage 25.6V
Nominal capacity 100Ah/200Ah @0.5C Discharge
Dimension
100Ah: 250*160*300mm
200Ah:320*200*250mm
Weight
100Ah: 20kg
200Ah: 32kg
Working voltage 20-29.2V
Discharge rate Continuous:≤1c Max:3c/5s
Lifespan ≥2000 cycles
Charge rate ≤1c
Suggested discharge & charge rate 0.5c & 0.5c
Operating temperature Charging: 0°C ~ 45°C
Discharging: -20°C ~60°C
Company introduction
CTS is a pioneer in the lithium battery market and a unique lithium battery solutions company. LiFePo4 and NMC(Li(NiCoMn)O2) are the major material.
Lithium polymer battery modules in parallel or in series, can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station, E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.
Contact information:
rebecca@cts-tech.ltd
86 15773256831
