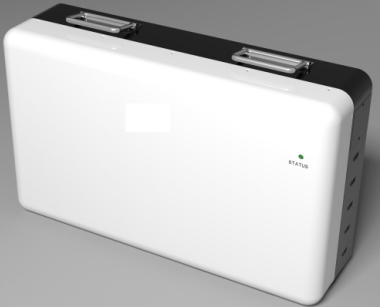

48v 100ah
Nominal Parameters
Voltage 51.2Vdc 51.2Vdc
Capacity 95.2Ah 136Ah
Energy 4.8kWh 7.0kWh
Warranty 5 years 5 years
Dimensions (W/H/D) 625/548/185.5mm 694/620/165mm
Weight 62Kg 90kg
Basic Parameters
Life time (25°C) 10 years
Life cycles (90% DOD, 25°C) 6000 cycles
Storage time / temperature 6 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature -20°C to 60°C @60+/-25% Relative Humidity
Storage temperature 0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard UL 1642
EMC standard IEC 61000
Enclosure protection rating IP54
Electrical Parameters
Operation voltage 43.2 - 57.6Vdc 43.2 - 57.6Vdc
Max. charging voltage 57.6Vdc 57.6Vdc
Max. charging current 48A 80A
Max. discharging current 48A 80A
Max. power 3KW 5KW
Peak power (for 3 secs) 4KW 7KW
Communication Parameters
Network interface RS485
Voltage 51.2Vdc 51.2Vdc
Capacity 95.2Ah 136Ah
Energy 4.8kWh 7.0kWh
Warranty 5 years 5 years
Dimensions (W/H/D) 625/548/185.5mm 694/620/165mm
Weight 62Kg 90kg
Basic Parameters
Life time (25°C) 10 years
Life cycles (90% DOD, 25°C) 6000 cycles
Storage time / temperature 6 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature -20°C to 60°C @60+/-25% Relative Humidity
Storage temperature 0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard UL 1642
EMC standard IEC 61000
Enclosure protection rating IP54
Electrical Parameters
Operation voltage 43.2 - 57.6Vdc 43.2 - 57.6Vdc
Max. charging voltage 57.6Vdc 57.6Vdc
Max. charging current 48A 80A
Max. discharging current 48A 80A
Max. power 3KW 5KW
Peak power (for 3 secs) 4KW 7KW
Communication Parameters
Network interface RS485
Certificate
- ISO9001
- CE
- UL
- Rohs
Main Products
EV battery, BMS, lifepo4 battery, NMC battery, lithium battery
