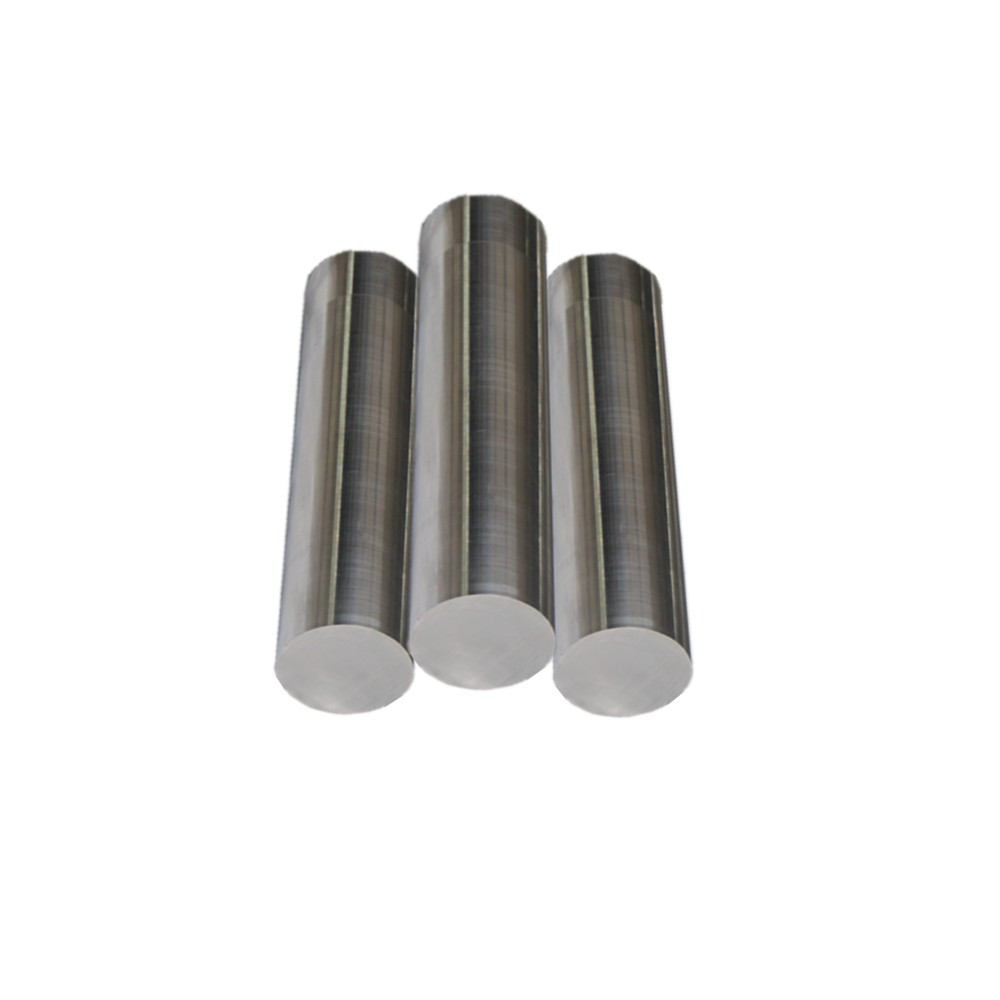

Soft Magnetic -Iron Cobalt alloy
Composition (Nominal): (ASTM A801 Alloy 1)
Co 49; V 2; Fe 49;
Hiperco® 50A Alloy is an iron-cobalt-vanadium soft magnetic alloy which exhibitshigh magnetic saturation, high D.C. maximum permeability, low D.C. coercive force,
and low A.C. core loss.
MAGNETIC PROPERTY
Magnetic induction at different magnetic field B,≥(T)
Strip--B800(A/m)2.0;--B1600(A/m)2.10;--B4000(A/m)2.20;--B8000(A/m)2.25; Coercivity Hc,≤(A/m)128
Rod--B800(A/m)1.5;--B1600(A/m)1.75;--B4000(A/m)1.95;--B8000(A/m)2.15; Coercivity Hc,≤(A/m)144
Δ Further-Process (Heat Treatment)
Use a non-oxidizing ,non-carburizing atmosphere such as dry hydrogen,argon,or equivalent ,or a Vacuum. Appropriate safety precaution must be taken when working with highly flammable atmospheres.
Δ Packing detail
1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
3). Bar (plastic spool) + wooden case + pallet
4). As Per Request.
Co 49; V 2; Fe 49;
Hiperco® 50A Alloy is an iron-cobalt-vanadium soft magnetic alloy which exhibitshigh magnetic saturation, high D.C. maximum permeability, low D.C. coercive force,
and low A.C. core loss.
MAGNETIC PROPERTY
Magnetic induction at different magnetic field B,≥(T)
Strip--B800(A/m)2.0;--B1600(A/m)2.10;--B4000(A/m)2.20;--B8000(A/m)2.25; Coercivity Hc,≤(A/m)128
Rod--B800(A/m)1.5;--B1600(A/m)1.75;--B4000(A/m)1.95;--B8000(A/m)2.15; Coercivity Hc,≤(A/m)144
Δ Further-Process (Heat Treatment)
Use a non-oxidizing ,non-carburizing atmosphere such as dry hydrogen,argon,or equivalent ,or a Vacuum. Appropriate safety precaution must be taken when working with highly flammable atmospheres.
Δ Packing detail
1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
3). Bar (plastic spool) + wooden case + pallet
4). As Per Request.
Certificate
- ISO9001
- Mill Certificate & RoHs Report
