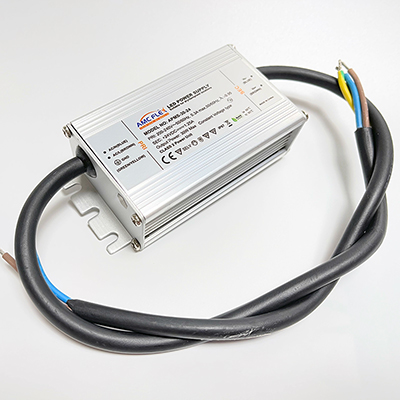

Model:APMS-30-24
Technical Specs:
Output Parameters
Rated Output voltage: 24VDC
Rated Output Current:1.25A
Rated Output Power:30W Max
Efficiency>88%
Line Regulation:±0.5%
Load Regulation:±1.5%
Voltage tolerance:±3%

2. Input Parameters
Rated Input voltage:200-277VAC
Input voltage range:176-305VAC, 47-63hz
Input Current Max:0.3A
Inrush Current0.95
THD200Khours
Dimension:104(L)*51 (W)*28.5(H)mm
Packing:0.35KG/PC,350 x 310 x 260 mm, 40pcs /15.5Kg /0.02CBM/CTN

Model NO/input voltage/output voltage/output current/output power/Efficiency/ Dimension
APMS-30-24/200-277VAC/24VDC/1250mA/30W/88%/105x51x28.5mm
APMS-30-36/200-277VAC/36VDC/830mA/30W/88%/105x51x28.5mm
APMS-30-48/200-277VAC/48VDC/625mA/30W/88%/105x51x28.5mm
APMS-30-54/200-277VAC/54VDC/550mA/30W/88%/105x51x28.5mm
