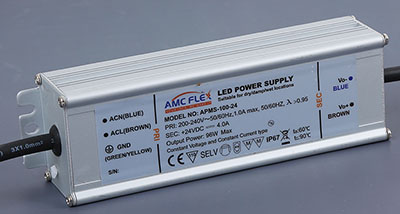

Model:APMS-100-24
Technical Specs:
Output Parameters
Rated Output voltage: 24VDC
Rated Output Current:4.2A
Rated Output Power:100W Max
Efficiency>91%
Line Regulation:±0.5%
Load Regulation:±1.5%
Voltage tolerance:±3%

2. Input Parameters
Rated Input voltage:200-277VAC
Input voltage range:176-305VAC, 47-63hz
Input Current Max:1.0A
Inrush Current0.95
THD200Khours
Dimension:150(L)*51 (W)*38(H)mm
Packing: 0.65KG/PC, 350x310x260mm, 20pcs /14.

Model NO/input voltage/output voltage/output current/output power/Efficiency/ Dimension
APMS-100-24/200-277VAC/24VDC/4000mA/100W/91%/155x51x38mm
APMS-100-36/200-277VAC/36VDC/2777mA/100W/92%/155x51x38mm
APMS-100-48/200-277VAC/48VDC/2080mA/100W/92%/155x51x38mm
APMS-100-54/200-277VAC/54VDC/1850mA/100W/93%/155x51x38mm
