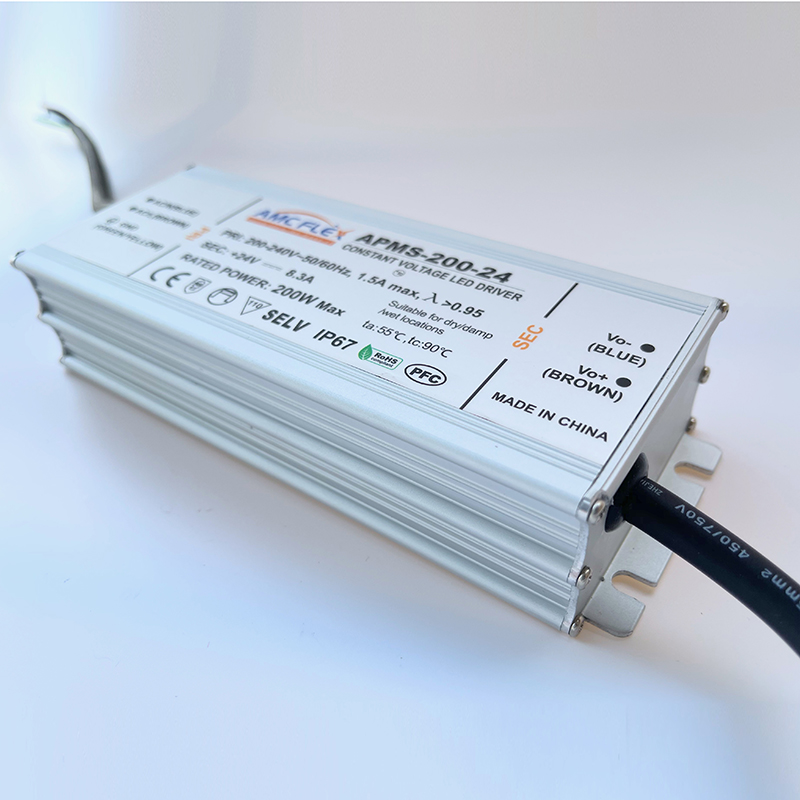

200W 24V IP67 waterproof LED Driver Metal PFC
Model:APMS-200-24
Technical Specs:
Output Parameters
Rated Output voltage: 24VDC
Rated Output Current:8.3A
Rated Output Power:200W Max
Efficiency>92%
Line Regulation:±0.5%
Load Regulation:±1.5%
Voltage tolerance:±3%
2. Input Parameters
Rated Input voltage:200-277VAC
Input voltage range:176-305VAC, 47-63hz
Input Current Max:1.5A
Inrush Current0.95
THD200Khours
Dimension:199(L)*63 (W)*40(H)mm
Packing: 1KG/PC, 350x310x260mm, 14PCS /15.5Kg
Model NO/input voltage/output voltage/output current/output power/Efficiency/ Dimension
APMS-200-24/200-277VAC/24VDC/8300mA/200W/92%/199x63x40mm
APMS-200-36/200-277VAC/36VDC/5500mA/200W/93%/199x63x40mm
APMS-200-48/200-277VAC/48VDC/4160mA/200W/93%/199x63x40mm
APMS-200-54/200-277VAC/54VDC/3700mA/200W/93%/199x63x40mm
Technical Specs:
Output Parameters
Rated Output voltage: 24VDC
Rated Output Current:8.3A
Rated Output Power:200W Max
Efficiency>92%
Line Regulation:±0.5%
Load Regulation:±1.5%
Voltage tolerance:±3%
2. Input Parameters
Rated Input voltage:200-277VAC
Input voltage range:176-305VAC, 47-63hz
Input Current Max:1.5A
Inrush Current0.95
THD200Khours
Dimension:199(L)*63 (W)*40(H)mm
Packing: 1KG/PC, 350x310x260mm, 14PCS /15.5Kg
Model NO/input voltage/output voltage/output current/output power/Efficiency/ Dimension
APMS-200-24/200-277VAC/24VDC/8300mA/200W/92%/199x63x40mm
APMS-200-36/200-277VAC/36VDC/5500mA/200W/93%/199x63x40mm
APMS-200-48/200-277VAC/48VDC/4160mA/200W/93%/199x63x40mm
APMS-200-54/200-277VAC/54VDC/3700mA/200W/93%/199x63x40mm
Certificate
- ISO CE ROHS
