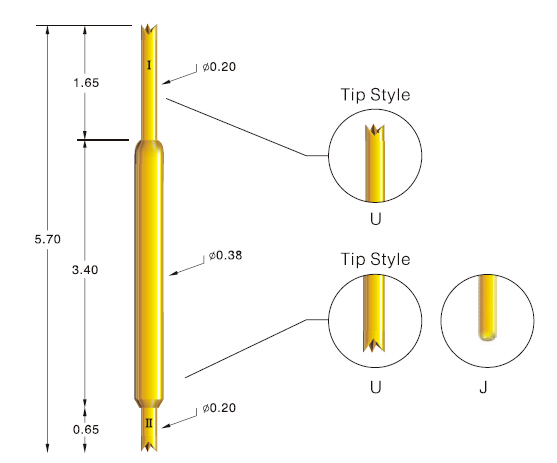

Semi-conductor test probes PGD30-UU-0.8G
Pitch 0.50mm
Mechanical Specification
Full Stroke: 1.10mm
Rated Stroke: 0.80mm
Spring Force: 25gf@ Load 0.80mm
Electrical Specification
Current Rating: 0.5 A, Continuous
Bandwidth:4.3GHz@-1dB
Propagation Delay:27ps
Materials
Barrel: Phosphor Bronze, Gold Plated.
Plunger: Full-Hard Beryllium Copper.
Gold Plated Spring: Music Wire, Gold Plated.
The model PGD30-UU-0.8G is a model with small diameter. Our company has specialized in test probes for over 30 years and can offer products of high quality at competitive prices. If you have interest, please feel free to browse our website (www. centalic.com) or contact me any time. Many thanks!
Pitch 0.50mm
Mechanical Specification
Full Stroke: 1.10mm
Rated Stroke: 0.80mm
Spring Force: 25gf@ Load 0.80mm
Electrical Specification
Current Rating: 0.5 A, Continuous
Bandwidth:4.3GHz@-1dB
Propagation Delay:27ps
Materials
Barrel: Phosphor Bronze, Gold Plated.
Plunger: Full-Hard Beryllium Copper.
Gold Plated Spring: Music Wire, Gold Plated.
The model PGD30-UU-0.8G is a model with small diameter. Our company has specialized in test probes for over 30 years and can offer products of high quality at competitive prices. If you have interest, please feel free to browse our website (www. centalic.com) or contact me any time. Many thanks!
