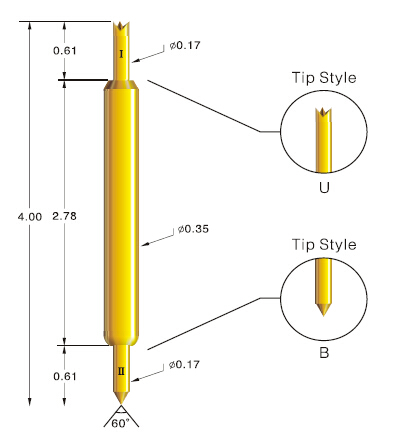

Semi-conductor probes SCP035-BU-40-G
Pitch 0.45mm
Mechanical Specification
Full Stroke: 0.61mm
Rated Stroke: 0.40mm
Spring Force: 28gf @ Load 0.40mm
Electrical Specification
Current Rating: 0.3 A, Continuous
Bandwidth: 6.52GHz @-1dB
Propagation Delay: 15ps
Materials
Barrel: Phosphor Bronze, Gold Plated.
Plunger: Full-Hard Beryllium Copper.Gold Plated.
Spring: Music Wire, Gold Plated.
Apart from this model, we also produce various models of small diameters. As a professional manufacturer with over 30 years’ experience, our company attachment importance to the quality of each test probes delivered to global customers. If you have any other questions, please feel free to browse our website (www.centalic.com) or contact me any time. Thanks !
Pitch 0.45mm
Mechanical Specification
Full Stroke: 0.61mm
Rated Stroke: 0.40mm
Spring Force: 28gf @ Load 0.40mm
Electrical Specification
Current Rating: 0.3 A, Continuous
Bandwidth: 6.52GHz @-1dB
Propagation Delay: 15ps
Materials
Barrel: Phosphor Bronze, Gold Plated.
Plunger: Full-Hard Beryllium Copper.Gold Plated.
Spring: Music Wire, Gold Plated.
Apart from this model, we also produce various models of small diameters. As a professional manufacturer with over 30 years’ experience, our company attachment importance to the quality of each test probes delivered to global customers. If you have any other questions, please feel free to browse our website (www.centalic.com) or contact me any time. Thanks !
Certificate
- 9001:2008
Main Products
Test System, Test Probes, Test Fixture and Fixture accessories
