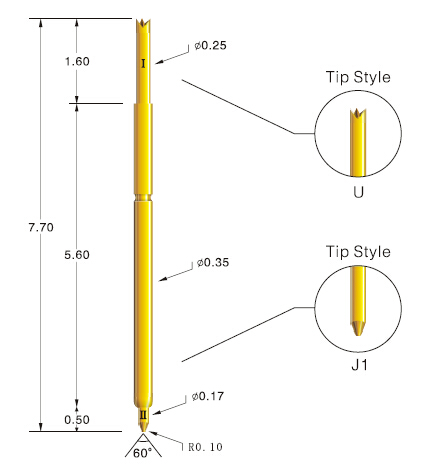

Semi-conductor probes SCP035-J1U-77-G
Pitch 0.45mm
Mechanical Specification
Full Stroke: 1.00mm
Rated Stroke: 0.50mm
Spring Force: 18gf @ Load 0.50mm
Electrical Specification
Current Rating: 0.3 A, Continuous
Bandwidth: 2.85GHz@-1dB
Propagation Delay: 40ps
Materials
Barrel: Phosphor Bronze, Gold Plated.
Plunger: Full-Hard Beryllium Copper. Gold Plated.
Spring: Music Wire, Gold Plated
SCP035-J1U-77-G is among our most popular models. Having being manufacturing test probes for over 30 years , our factory is able to provide goods of high quality and competitive prices. If you are interested, please feel free to contact me or browse our website (www.centalic.com). Thank you!
Pitch 0.45mm
Mechanical Specification
Full Stroke: 1.00mm
Rated Stroke: 0.50mm
Spring Force: 18gf @ Load 0.50mm
Electrical Specification
Current Rating: 0.3 A, Continuous
Bandwidth: 2.85GHz@-1dB
Propagation Delay: 40ps
Materials
Barrel: Phosphor Bronze, Gold Plated.
Plunger: Full-Hard Beryllium Copper. Gold Plated.
Spring: Music Wire, Gold Plated
SCP035-J1U-77-G is among our most popular models. Having being manufacturing test probes for over 30 years , our factory is able to provide goods of high quality and competitive prices. If you are interested, please feel free to contact me or browse our website (www.centalic.com). Thank you!
Certificate
- ISO 9001:2008
Main Products
Test System, Test Probes, Test Fixture and Fixture accessories
