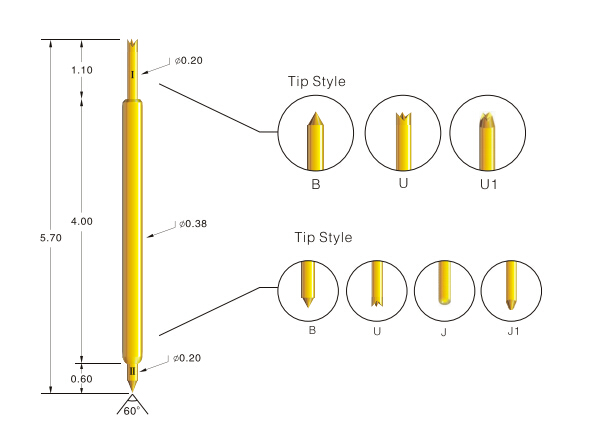

Semi-conductor probes PDJ038-BU-G
Pitch 0.50mm
Mechanical Specification
Full Stroke: 1.10mm
Rated Stroke: 0.65mm
Spring Force: 30gf@ Load 0.65mm
Electrical Specification
Current Rating: 0.5 A, Continuous
Bandwidth:4.7GHz@-1dB
Propagation Delay:25ps
Materials
Barrel: Phosphor Bronze, Gold Plated.
Plunger: Full-Hard Beryllium Copper.Gold Plated
Spring: Music Wire, Gold Plated.
Our factory produces Semi-conductor probe PDJ038-BU-G and other models of test pins. With over 30 years’ manufacturing experience, we are able to provide test probes of high quality at competitive prices. If you are interested, please browse our website (www.centalic.com) for models with detailed specifications. We are looking forward to your letter. Thank you!
Pitch 0.50mm
Mechanical Specification
Full Stroke: 1.10mm
Rated Stroke: 0.65mm
Spring Force: 30gf@ Load 0.65mm
Electrical Specification
Current Rating: 0.5 A, Continuous
Bandwidth:4.7GHz@-1dB
Propagation Delay:25ps
Materials
Barrel: Phosphor Bronze, Gold Plated.
Plunger: Full-Hard Beryllium Copper.Gold Plated
Spring: Music Wire, Gold Plated.
Our factory produces Semi-conductor probe PDJ038-BU-G and other models of test pins. With over 30 years’ manufacturing experience, we are able to provide test probes of high quality at competitive prices. If you are interested, please browse our website (www.centalic.com) for models with detailed specifications. We are looking forward to your letter. Thank you!
Certificate
- ISO 9001:2008
Main Products
Test System, Test Probes, Test Fixture and Fixture accessories
