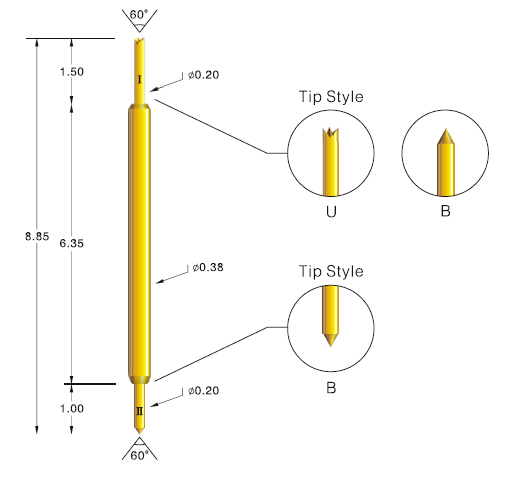

Semi-conductor probes SCP038(63) -BU-88-G
Pitch 0.50mm
Mechanical Specification
Full Stroke: 2.00mm
Rated Stroke: 0.80mm
Spring Force: 25gf@ Load 0.80mm
Electrical Specification
Current Rating: 0.5A, continuous
Bandwidth:2.3GHz@-1dB
Propagation Delay:44ps
Materials
Barrel: Phosphor Bronze, Gold Plated.
Plunger: Full-Hard Beryllium Copper. Gold Plated.
Spring: Music Wire, Gold Plated.
Semi-conductor probes SCP038(63) - BU—88-G are always in great demand. Apart from this model, we also provide other products of small diameters at competitive prices. If you are interested, please feel free to browse our website (www.centalic.com) or contact me any time. Thanks a lot!
Pitch 0.50mm
Mechanical Specification
Full Stroke: 2.00mm
Rated Stroke: 0.80mm
Spring Force: 25gf@ Load 0.80mm
Electrical Specification
Current Rating: 0.5A, continuous
Bandwidth:2.3GHz@-1dB
Propagation Delay:44ps
Materials
Barrel: Phosphor Bronze, Gold Plated.
Plunger: Full-Hard Beryllium Copper. Gold Plated.
Spring: Music Wire, Gold Plated.
Semi-conductor probes SCP038(63) - BU—88-G are always in great demand. Apart from this model, we also provide other products of small diameters at competitive prices. If you are interested, please feel free to browse our website (www.centalic.com) or contact me any time. Thanks a lot!
