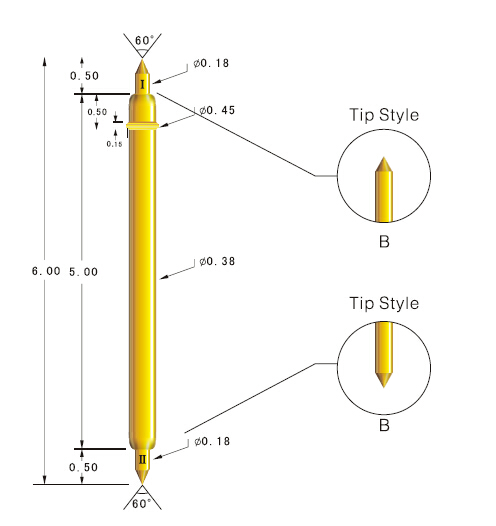

Semi-conductor test probe SDP038-BB-60-G
Pitch 0.55mm
Mechanical Specification
Full Stroke: 1.00mm
Rated Stroke: 0.60mm
Spring Force: 25gf@ Load 0.60mm
Electrical Specification
Current Rating: 0.5 A, Continuous
Bandwidth:4.2GHz@-1dB
Propagation Delay:27ps
Materials
Barrel: PhosphorBronze, Gold Plated.
Plunger: Full-HardBeryllium Copper. Gold Plated.
Spring: Music Wire,Gold Plated.
In addition to semiconductor test probe SDP038-BB-60-G, our factory also produces other models of high quality test pins at competitive prices. If you are interested, please feel free to browse our website (www.centalic.com) or contact me any time. Thank you!
Pitch 0.55mm
Mechanical Specification
Full Stroke: 1.00mm
Rated Stroke: 0.60mm
Spring Force: 25gf@ Load 0.60mm
Electrical Specification
Current Rating: 0.5 A, Continuous
Bandwidth:4.2GHz@-1dB
Propagation Delay:27ps
Materials
Barrel: PhosphorBronze, Gold Plated.
Plunger: Full-HardBeryllium Copper. Gold Plated.
Spring: Music Wire,Gold Plated.
In addition to semiconductor test probe SDP038-BB-60-G, our factory also produces other models of high quality test pins at competitive prices. If you are interested, please feel free to browse our website (www.centalic.com) or contact me any time. Thank you!
