Working Principle

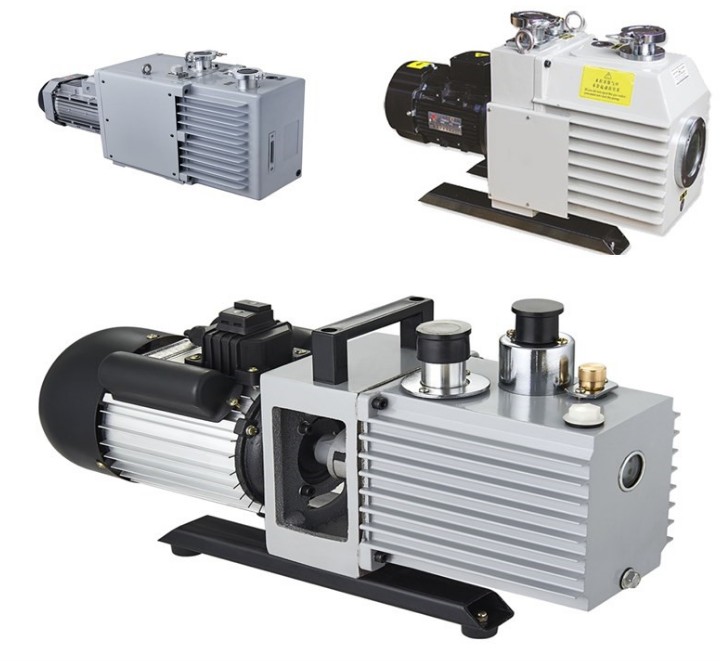

2XZ series rotary vane vacuum pump is double stage high speed oil sealed rotary vane vacuum pump (hereinafter referred it as "the pump" for short). Its pumping principle is same as that of 2X type pump. Rotors are eccentrically mounted within the cylindrical housing of the stators and vanes are fitted freely inside the respective slots of the rotor.

When the rotor rotates at high speed, vanes in the rotor slot are urged outwards by centrifugal force as well as by spring force so as to keep close contact at their tips with the stator wall throughout rotation.

Thus the inlet port and outlet port on the stator are separated by them. The volume of the space leading to the inlet port expands progressively and periodically with gas filling the space through inlet pipe, meanwhile the volume of the space leading to the outlet port diminishes progressively and periodically to compress the gas previously sucked.
