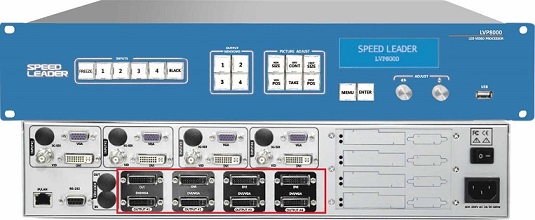

SPEEDLEADER LED VIDEO WALL PROCESSOR
Standard configuration:
input : 2*SDI, 2*VGA, 2*VID, 2*DVI (Can Extend to 4*SDI, 4*VGA, 4*VID,4*DVI )
output:2*DVI, 2*VGA/DVI
Product Description
Quick Details Place of Origin: Guangdong, China (Mainland)
Brand Name: Speedleader
Model Number: LVP8000
Input power supply: 100-240V AC, 50/60Hz
Power consumption: 50W
Working temperature: 0~45°C
Overall dimensions: 440 x 300 x 88mm
Weight: 6.5kg
Packaging & Delivery
Packaging Details: Carton
Delivery Detail: EXW Shenzhen
Feature:
Input: DVI*4, VGA*4, VID*4, can EXT SDI*4
Output: 4 channel, 8 outputs
1. 4x4 hybrid matrix
2. Up to 10240x960, 4608x2304 or 1920x4800 output resolution
3. 4 separate led video processor
4. Frame lock sync
5. Support 4 sending card built-in
6. Configurable input, including DVI, VGA, VID. (can extend SDI Input)
Standard configuration:
input : 2*SDI, 2*VGA, 2*VID, 2*DVI (Can Extend to 4*SDI, 4*VGA, 4*VID,4*DVI )
output:2*DVI, 2*VGA/DVI
Product Description
Quick Details Place of Origin: Guangdong, China (Mainland)
Brand Name: Speedleader
Model Number: LVP8000
Input power supply: 100-240V AC, 50/60Hz
Power consumption: 50W
Working temperature: 0~45°C
Overall dimensions: 440 x 300 x 88mm
Weight: 6.5kg
Packaging & Delivery
Packaging Details: Carton
Delivery Detail: EXW Shenzhen
Feature:
Input: DVI*4, VGA*4, VID*4, can EXT SDI*4
Output: 4 channel, 8 outputs
1. 4x4 hybrid matrix
2. Up to 10240x960, 4608x2304 or 1920x4800 output resolution
3. 4 separate led video processor
4. Frame lock sync
5. Support 4 sending card built-in
6. Configurable input, including DVI, VGA, VID. (can extend SDI Input)
Certificate
- CE
- FCC
Main Products
LED video processor
