Basic information：
Item No.: BY1-C0200
Size:6.0 mm2
Conductor:84/0.285
Insulation dia.(mm):4.2
Insulation color: Black
Nominal Jacket dia. (mm):6.5
Jacket color: Red
Rated current at 60℃ A:41
1.Application

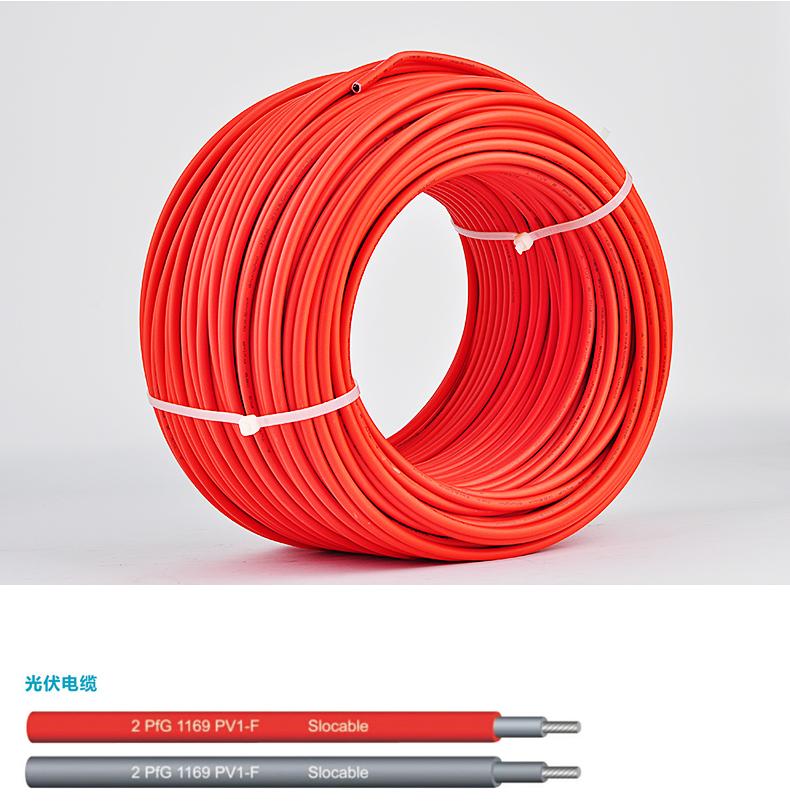

FOLLOWRAY SOLAR CABLE used for interconnection wiring of grounded and ungrounded photovoltaic power systems
2. Cable design
(1) Conductor: fine wire strands of tinned copper wires, according to IEC 60228, Class 5
(2) Insulation: halogen-free PE,electron beam cross-linked
Colors: black
(3) Outer jacket: halogen-free and flame retardant PE, electron beam cross-linked
resistance against water, UV resistant
Jacket color: black, red
3.Temperature range
Max, the temperature at conductor -40℃ up to +120℃
Temperature range -40℃ up to +90℃(min. 25 years)

4. Electrical characteristics
Nominal voltage U0/U AC 600/1000V, DC 1500V
Mat.DC voltage 1800V(conductor-conductor,
the non-earthed system,
