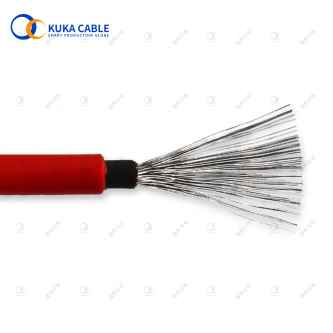

Chinese supplier high quality copper wire uv resistance solar pv cable 4 mm2
Product ID: PV1-F
Send Inquiry
Basic information:
Item No.: BY1-C0200
Size:6.0 mm2
Conductor:84/0.285
Insulation dia.(mm):4.2
Insulation color: Black
Nominal Jacket dia. (mm):6.5
Jacket color: Red
Rated current at 60℃ A:41
1.Application
FOLLOWRAY SOLAR CABLE used for interconnection wiring of grounded and ungrounded photovoltaic power systems
2. Cable design
(1) Conductor: fine wire strands of tinned copper wires, according to IEC 60228, Class 5
(2) Insulation: halogen-free PE,electron beam cross-linked
Colors: black
(3) Outer jacket: halogen-free and flame retardant PE, electron beam cross-linked
resistance against water, UV resistant
Jacket color: black, red
Item No.: BY1-C0200
Size:6.0 mm2
Conductor:84/0.285
Insulation dia.(mm):4.2
Insulation color: Black
Nominal Jacket dia. (mm):6.5
Jacket color: Red
Rated current at 60℃ A:41
1.Application
FOLLOWRAY SOLAR CABLE used for interconnection wiring of grounded and ungrounded photovoltaic power systems
2. Cable design
(1) Conductor: fine wire strands of tinned copper wires, according to IEC 60228, Class 5
(2) Insulation: halogen-free PE,electron beam cross-linked
Colors: black
(3) Outer jacket: halogen-free and flame retardant PE, electron beam cross-linked
resistance against water, UV resistant
Jacket color: black, red
Certificate
- TUV
Main Products
solar cable
